XAUR14A2

Active

SunLED

DISP 14-SEG 0.54" DBL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAUR14A2

Active

SunLED

DISP 14-SEG 0.54" DBL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XAUR14A2	XAUR14 Series

Color	Red	Red
Common Pin	Common Anode	Common Cathode, Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	0.54 in	0.54 in
Digit/Alpha Size	13.72 mm	13.72 mm
Display Type	14-Segment, Alphanumeric	14-Segment, Alphanumeric
Millicandela Rating	2 mcd	2 mcd
Number of Characters	2	2
Package / Case	15.24 mm	15.24 mm
Package / Case	0.6 in	0.6 in
Package / Case	18-DIP	18-DIP
Power Dissipation (Max) [Max]	75 mw	75 mw
Size / Dimension [x]	21.2 mm	21.2 mm
Size / Dimension [x]	0.835 in	0.835 in
Size / Dimension [y]	0.992 "	0.992 "
Size / Dimension [y]	25.2 mm	25.2 mm
Size / Dimension [z]	0.31 in	0.31 in
Size / Dimension [z]	7.8 mm	7.8 mm
Voltage - Forward (Vf) (Typ)	1.9 V	1.9 V
Wavelength - Peak	627 nm	627 nm

XAUR14 Series

DISP 14SEG 0.54" DBL RED 18DIP

Part	Power Dissipation (Max) [Max]	Display Type	Common Pin	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case	Package / Case	Package / Case	Number of Characters	Millicandela Rating	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Color
SunLED XAUR14C2	75 mw	14-Segment, Alphanumeric	Common Cathode	1.9 V	10 mA	15.24 mm	0.6 in	18-DIP	2	2 mcd	627 nm	0.54 in	13.72 mm	0.992 "	21.2 mm	0.835 in	0.31 in	25.2 mm	7.8 mm	Red
SunLED XAUR14A2	75 mw	14-Segment, Alphanumeric	Common Anode	1.9 V	10 mA	15.24 mm	0.6 in	18-DIP	2	2 mcd	627 nm	0.54 in	13.72 mm	0.992 "	21.2 mm	0.835 in	0.31 in	25.2 mm	7.8 mm	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.98

Description

General part information

XAUR14 Series

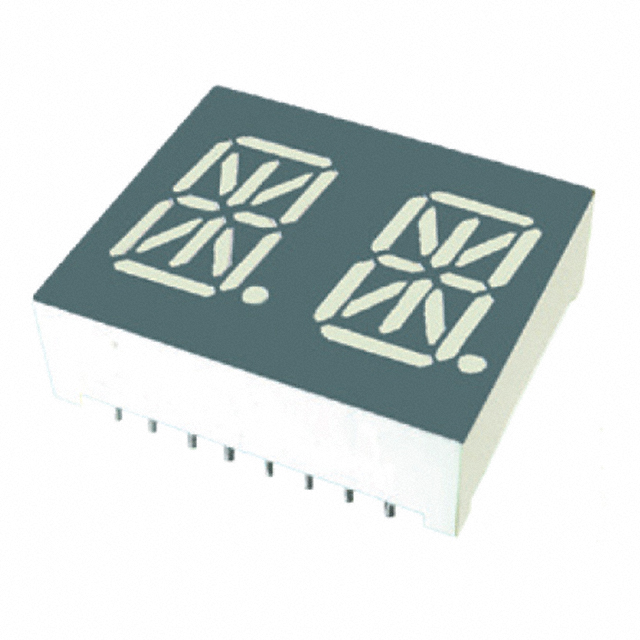

Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 2 Character Common Anode 1.9V 10mA 0.835" H x 0.992" W x 0.310" D (21.20mm x 25.20mm x 7.80mm) 18-DIP (0.600", 15.24mm)
