770351-1

Active

TE Connectivity AMP Connectors

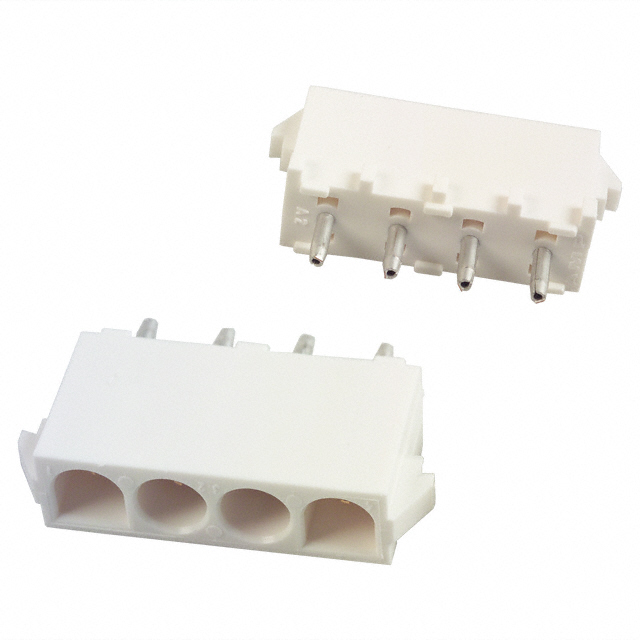

CONN HEADER VERT 4POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 6.35MM

Technical Specifications

Parameters and characteristics for this part

Specification	770351-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	12 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 4POS 6.35MM

Part	Fastening Type	Insulation Material	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Contact Length - Post	Contact Length - Post	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Applications	Number of Rows	Material Flammability Rating	Contact Material	Mounting Type	Shrouding	Number of Positions	Contact Type	Contact Shape	Style
TE Connectivity AMP Connectors 770351-1	Locking Ramp	Nylon, Polyamide (PA)	Header	Natural	6.35 mm	0.25 in	0.55 in	13.97 mm	-40 °C	105 ░C	Tin	Solder	3.94 mm	0.155 "	600 VAC	All	12 A	General Purpose	1	UL94 V-2	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	4	Male Pin	Circular	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.250" (6.35mm)
