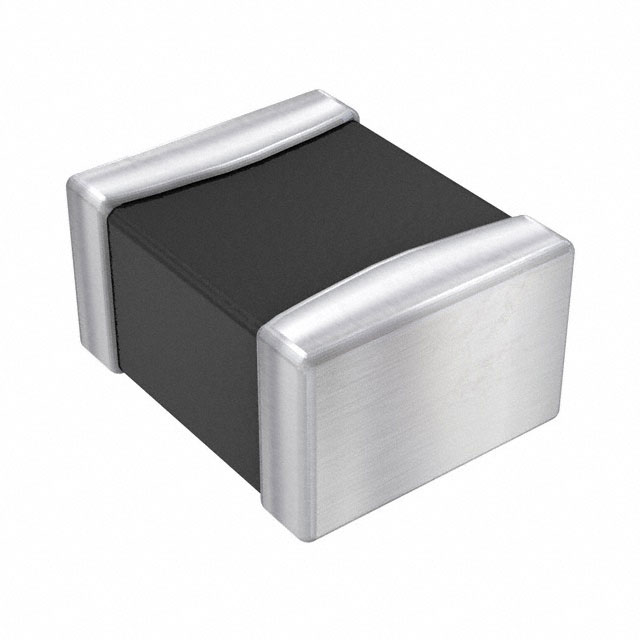

1286AS-H-1R0M=P2

Active

Murata Electronics

FIXED IND 1UH 2.5A 82 MOHM SMD

Search across all available documentation for this part.

Active

Murata Electronics

FIXED IND 1UH 2.5A 82 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 470NH 3.4A 52 MOHM SMD

Part	Material - Core	Tolerance	Mounting Type	Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Shielding	Inductance	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Murata Electronics 1286AS-H-R47M=P2	Iron Powder	20 %	Surface Mount	Drum Core, Wirewound	3.4 A	2 mm	0.063 in	1.6 mm	0.079 in	0806 (2016 Metric)	85 °C	-40 °C	0806 (2016 Metric)	1.2 mm	0.047 in	1 MHz	Shielded	470 nH
Murata Electronics 1286AS-H-1R5M=P2	Iron Powder	20 %	Surface Mount	Drum Core, Wirewound	2 A	2 mm	0.063 in	1.6 mm	0.079 in	0806 (2016 Metric)	85 °C	-40 °C	0806 (2016 Metric)	1.2 mm	0.047 in	1 MHz	Shielded	1.5 µH	114 mOhm
Murata Electronics 1286AS-H-1R0M=P2	Iron Powder	20 %	Surface Mount	Drum Core, Wirewound	2.5 A	2 mm	0.063 in	1.6 mm	0.079 in	0806 (2016 Metric)	85 °C	-40 °C	0806 (2016 Metric)	1.2 mm	0.047 in	1 MHz	Shielded	1 µH		82 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µH Shielded Drum Core, Wirewound Inductor 2.5 A 82mOhm Max 0806 (2016 Metric)
