917726-1

Active

TE Connectivity AMP Connectors

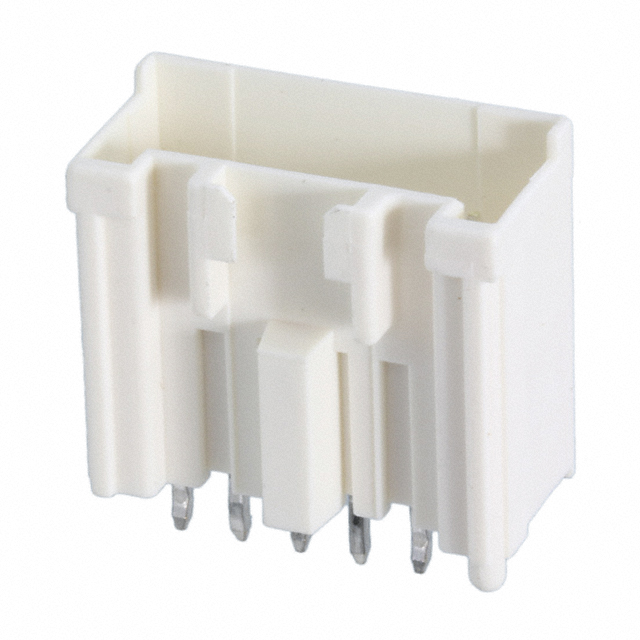

CONN HEADER VERT 6POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 6POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917726-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	15.29 mm
Insulation Height	0.602 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights [z]	19.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	15.9 mm
Overall Contact Length	0.626 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 6POS 2.5MM

Part	Contact Type	Contact Finish - Post	Material Flammability Rating	Connector Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Mated Stacking Heights [z]	Applications	Pitch - Mating	Pitch - Mating	Insulation Material	Voltage Rating	Overall Contact Length	Overall Contact Length	Shrouding	Insulation Color	Number of Positions Loaded	Fastening Type	Contact Shape	Style	Contact Material	Features	Contact Length - Post	Contact Length - Post [x]	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Rows
TE Connectivity AMP Connectors 917726-1	Male Pin	Tin	UL94 V-0	Header	0.185 in	4.7 mm	Through Hole	19.2 mm	General Purpose	2.5 mm	0.098 in	Polyamide (PA66), Nylon 6/6, Glass Filled	50 V	15.9 mm	0.626 in	Shrouded - 4 Wall	Natural	All	Latch Holder	Square	Board to Cable/Wire	Copper Alloy	Board Guide	3.2 mm	0.126 in	Kinked Pin, Solder	6	-30 ░C	105 ░C	15.29 mm	0.602 in	3 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.098" (2.50mm)
