83304E 009500

Active

Belden Inc.

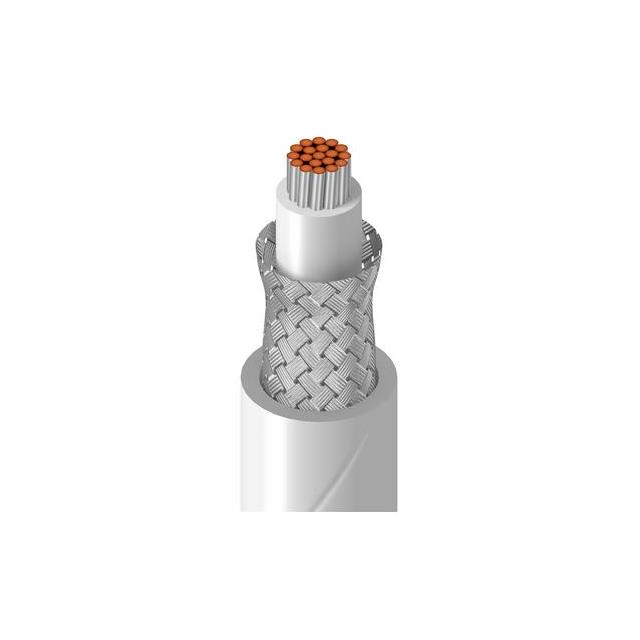

CBL 1COND STRND 24AWG WHITE 500'

Search across all available documentation for this part.

Active

Belden Inc.

CBL 1COND STRND 24AWG WHITE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	83304E 009500

Cable Type	Hook-Up, Shielded
Conductor Material	Copper, Silver Coated
Jacket (Insulation) Diameter [diameter]	2.16 mm
Jacket (Insulation) Diameter [diameter]	0.085 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Voltage	600 V
Wire Gauge	24 AWG

Part	Cable Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 83304E 009500	Hook-Up Shielded	600 V	2.16 mm	0.085 in	Tetrafluoroethylene (TFE)	MIL-W-16878/4 Type E	-65 ░C	200 °C	Copper Silver Coated	500 '	152.4 m	24 AWG	0.25 mm	0.01 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 AWG Hook-Up, Shielded Wire 19/36 White 600V 500.0' (152.4m)
