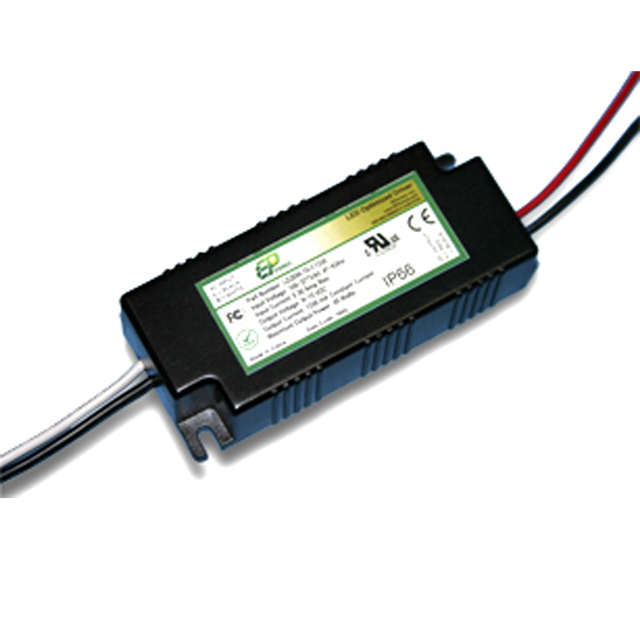

LD20W-43-C0460-RD
ActiveEPtronics, Inc.
21~43V@460MA, 0~10V DIM TO 0%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD20W-43-C0460-RD
ActiveEPtronics, Inc.
21~43V@460MA, 0~10V DIM TO 0%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LD20W-43-C0460-RD | LD20W Series |
|---|---|---|
| Approval Agency | CE, FCC, cURus | CE, FCC, cURus |
| Current - Output (Max) [Max] | 460 mA | 1.66 - 700 mA |
| Dimming | - | Analog, PWM, Non-Dimmable |
| Dimming [Max] [custom] | 10 V | 10 V |
| Dimming [Min] [custom] | 0 V | 0 V |
| Efficiency | 83 % | 80 - 84 % |
| Features | SCP, OCP, OVP | SCP, OCP, OVP |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 - -30 ░C |
| Power (Watts) | 20 W | 16.8 - 20 W |
| Ratings | IP66 | IP66 |
| Size / Dimension [x] | 95.5 mm | 95 - 95.5 mm |
| Size / Dimension [x] | 3.76 in | 3.74 - 3.76 " |
| Size / Dimension [y] | 40.9 mm | 40.9 mm |
| Size / Dimension [y] | 1.61 " | 1.61 " |
| Size / Dimension [z] | 0.98 in | 0.98 in |
| Size / Dimension [z] | 24.9 mm | 24.9 mm |
| Standard Number | C22.2, UL 8750 | C22.2, UL 8750 |
| Termination Style | Wire Leads | Wire Leads |
| Topology | AC DC Converter | AC DC Converter |
| Type | Constant Current | Constant Current, Constant Voltage |
| Voltage - Input (Max) [Max] | 305 VAC | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC | 90 - 100 VAC |
| Voltage - Isolation | 3750 V | 3750 V |
| Voltage - Output | - | 12 V |
| Voltage - Output [Max] | 43 V | 18 - 57 V |
| Voltage - Output [Min] | 21 V | 6 - 28 V |
| Weight | 0.368 lb | 0.368 - 0.369 lb |
| Weight | 166.92 g | 166.92 - 167.29 g |
LD20W Series
LED DRIVER AC/DC CC 7-22V 700MA
| Part | Mounting Type | Ratings | Topology | Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Power (Watts) | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Features | Dimming | Voltage - Output [Min] | Voltage - Output [Max] | Efficiency | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Termination Style | Standard Number | Dimming [Max] [custom] | Dimming [Min] [custom] | Weight | Weight | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EPtronics, Inc. LD20W-22-C0700 | Chassis Mount | IP66 | AC DC Converter | Constant Current | 90 VAC | 700 mA | 20 W | CE, cURus, FCC | 3.74 " | 24.9 mm | 1.61 " | 95 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | Analog, PWM | 7 V | 22 V | 81 % | 3750 V | -30 ░C | 60 °C | 305 VAC | Wire Leads | ||||||
EPtronics, Inc. LD20W-48-C0350-RD | Chassis Mount | IP66 | AC DC Converter | Constant Current | 100 VAC | 350 mA | 16.8 W | CE, cURus, FCC | 3.76 in | 24.9 mm | 1.61 " | 95.5 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | 24 V | 48 V | 83 % | 3750 kV | -40 °C | 60 °C | 305 VAC | Wire Leads | C22.2, UL 8750 | 10 V | 0 V | 0.369 lb | 167.29 g | ||
EPtronics, Inc. LD20W-12 | Chassis Mount | IP66 | AC DC Converter | Constant Voltage | 90 VAC | 1.66 A | 20 W | CE, cURus, FCC | 3.76 in | 24.9 mm | 1.61 " | 95.5 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | Non-Dimmable | 3750 V | -30 ░C | 60 °C | 305 VAC | Wire Leads | C22.2, UL 8750 | 0.368 lb | 166.92 g | 12 V | |||||
EPtronics, Inc. LD20W-57-C0350-RD | Chassis Mount | IP66 | AC DC Converter | Constant Current | 100 VAC | 350 mA | 20 W | CE, cURus, FCC | 3.76 in | 24.9 mm | 1.61 " | 95.5 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | 28 V | 57 V | 84 % | 3750 V | -40 °C | 60 °C | 305 VAC | Wire Leads | C22.2, UL 8750 | 10 V | 0 V | 0.368 lb | 166.92 g | ||
EPtronics, Inc. LD20W-43-C0460-RD | Chassis Mount | IP66 | AC DC Converter | Constant Current | 100 VAC | 460 mA | 20 W | CE, cURus, FCC | 3.76 in | 24.9 mm | 1.61 " | 95.5 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | 21 V | 43 V | 83 % | 3750 V | -40 °C | 60 °C | 305 VAC | Wire Leads | C22.2, UL 8750 | 10 V | 0 V | 0.368 lb | 166.92 g | ||
EPtronics, Inc. LD20W-40-C0500-RD | Chassis Mount | IP66 | AC DC Converter | Constant Current | 100 VAC | 500 mA | 20 W | CE, cURus, FCC | 3.76 in | 24.9 mm | 1.61 " | 95.5 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | 20 V | 40 V | 3750 V | -40 °C | 60 °C | 305 VAC | Wire Leads | C22.2, UL 8750 | 10 V | 0 V | 0.368 lb | 166.92 g | |||
EPtronics, Inc. LD20W-36-C0550 | Chassis Mount | IP66 | AC DC Converter | Constant Current | 90 VAC | 550 mA | 20 W | CE, cURus, FCC | 3.74 " | 24.9 mm | 1.61 " | 95 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | Analog, PWM | 12 V | 36 V | 3750 V | -30 ░C | 60 °C | 305 VAC | Wire Leads | |||||||
EPtronics, Inc. LD20W-18-C1100 | Chassis Mount | IP66 | AC DC Converter | Constant Current | 90 VAC | 20 W | CE, cURus, FCC | 3.74 " | 24.9 mm | 1.61 " | 95 mm | 40.9 mm | 0.98 in | 1 | OCP, OVP, SCP | Analog, PWM | 6 V | 18 V | 80 % | 3750 V | -30 ░C | 60 °C | 305 VAC | Wire Leads |
