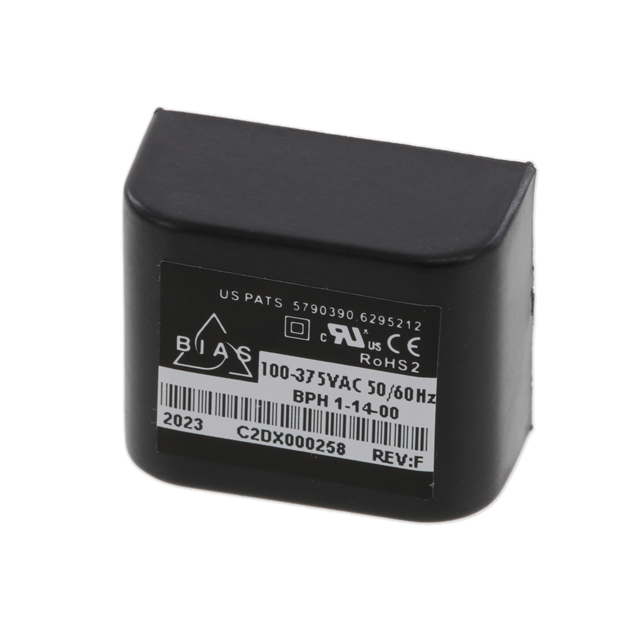

BPH1-14-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1W

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 14V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 14V 100 ~ 375 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 14V 5V 747MW

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Mounting Type	Applications	Approval Agency	Power (Watts)	Number of Outputs	Type	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]
Cita Technologies, LLC. BPH1-14-50	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	28 mA, 71 mA	70 °C	-30 ░C	70 %	14 V	Through Hole	ITE (Commercial)	CB, cURus	747 mW	2	Enclosed	7-DIP Module	100 VAC	375 VAC
Cita Technologies, LLC. BPH1-14-00	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm		70 °C	-30 ░C	70 %	14 V	Through Hole	ITE (Commercial)	CB, cURus		1	Enclosed	7-DIP Module	100 VAC	375 VAC
Cita Technologies, LLC. BPH1-14-33	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	23 mA, 71 mA	70 °C	-30 ░C	70 %	14 V	Through Hole	ITE (Commercial)	CB, cURus	556 mW	2	Enclosed	7-DIP Module	100 VAC	375 VAC
