WS0850100F070SA

Active

E-Switch

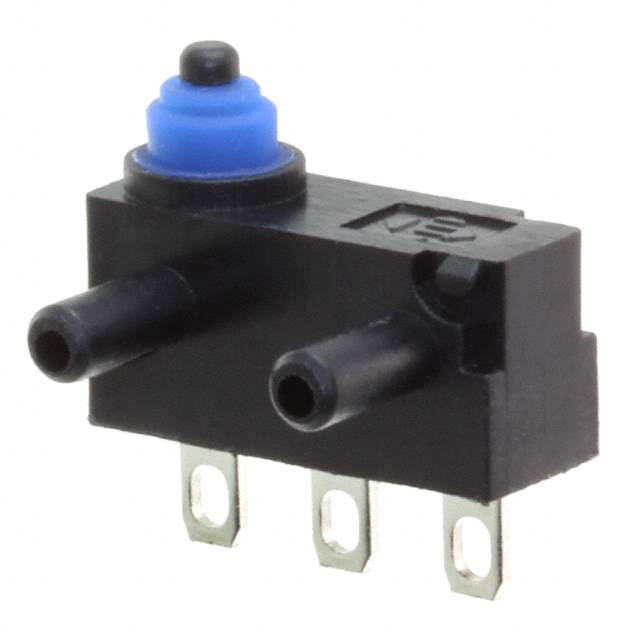

SWITCH SNAP ACTION SPDT 1A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 1A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS0850100F070SA	WS0850 Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	1 A	1 A
Electrical Life	10000 Cycles	10000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Operating Force	70 gf	50 - 70 gf
Operating Position	0.413 in	0.413 - 0.528 in
Operating Position	10.5 mm	10.5 - 13.4 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Wire Leads, Solder Lug, PC Pin
Voltage Rating - DC	24 V	24 V

SWITCH SNAP ACTION SPDT 1A 24V

Part	Circuit	Mechanical Life	Operating Position	Operating Position	Current Rating (Amps)	Actuator Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Switch Function	Voltage Rating - DC	Operating Force	Termination Style	Electrical Life
E-Switch WS0850101F050WA	SPDT	1000000 Cycles	0.528 in	13.4 mm	1 A	Lever, Straight	Chassis Mount	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	On-Mom	24 V	50 gf	Wire Leads	10000 Cycles
E-Switch WS0850100F070SA	SPDT	1000000 Cycles	0.413 in	10.5 mm	1 A	Round (Pin Plunger)	Chassis Mount	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	On-Mom	24 V	70 gf	Solder Lug	10000 Cycles
E-Switch WS0850100F070PA	SPDT	1000000 Cycles	0.413 in	10.5 mm	1 A	Round (Pin Plunger)	Through Hole	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	On-Mom	24 V	70 gf	PC Pin	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
