1418SFYY

Active

Hammond Manufacturing

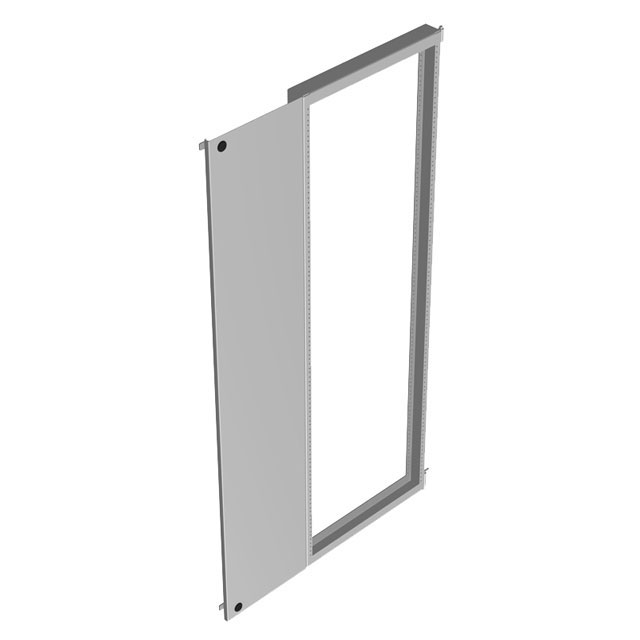

SWING FRAME 87.9X33.7X4.3" BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview 1418SFX Drawing

1418SFYY

Active

Hammond Manufacturing

SWING FRAME 87.9X33.7X4.3" BLK

Deep-Dive with AI

DocumentsEnclosure Overview 1418SFX Drawing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 1246.73

Description

General part information

1418 Series

Metal, Steel Swing Frame 87.860" L x 33.720" W x 4.280" H (2231.64mm x 856.49mm x 108.71mm) Black

Documents

Technical documentation and resources

Enclosure Overview

Datasheet

1418SFX Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1418SFYY	1418 Series

Accessory Type	-	Rails, Support Brackets
Area (L x W)	-	192 - 2592 in˛
Area (L x W)	-	1.115 - 9755 cm˛
Area (L x W)	-	600 - 864 in²
Area (L x W)	-	3871 - 5574 cm²
Area (L x W)	-	1260 in²
Area (L x W)	-	8129 cm²
Area (L x W)	-	8361 cm²
Color	Black	Black, Gray, Natural
Container Type	-	Box
Design	-	Hinged Door, Lid
Features	-	Interior Panels, Mounting Flange, Single Door, Single Access, Dual Access, Dual Door, Quarter Turn Latches
For Use With/Related Products	1418 Series	1418 Series
Height	-	152.4 - 609.6 mm
Height	-	6 - 24 in
Material	Metal, Steel	Metal, Steel, Aluminum
Ratings	-	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12, 4, 12, NEMA 3R, 13, IP66, 4X, NEMA 4, NEMA 4X, UL 508
Shipping Info	Drop shipped from the Manufacturer's Warehouse	Drop shipped from the Manufacturer's Warehouse
Size / Dimension	-	30 "
Size / Dimension	-	24 "
Size / Dimension	-	508 - 914.4 mm
Size / Dimension	-	1524 mm
Size / Dimension [x]	2231.64 mm	406.4 - 2231.64 mm
Size / Dimension [x]	87.86 in	16 - 87.86 in
Size / Dimension [y]	33.72 in	5.88 - 36 in
Size / Dimension [y]	856.49 mm	149.35 - 914.4 mm
Size / Dimension [z]	4.28 in	4.28 in
Size / Dimension [z]	108.71 mm	108.71 mm
Thickness	-	0.1 - 14 Gauge
Thickness	-	2.54 mm
Type	Swing Frame	Swing Frame
Ventilation	Non-Vented	Non-Vented
Weight	87 lbs	14 - 950 lbs
Weight	39.5 kg	6.4 - 700 kg
Weight	-	313 - 650 lbs
Weight	-	142 - 294.8 kg
Weight	-	317.5 kg

1418 Series

SWING FRAME 87.9X33.7X4.3" BLK

...

Part	Type	Color	Material	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	For Use With/Related Products	Ventilation	Shipping Info	Weight	Weight	Accessory Type	Ratings	Design	Thickness	Area (L x W)	Area (L x W)	Features	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness
Hammond Manufacturing 1418SFYY	Swing Frame	Black	Metal, Steel	4.28 in	108.71 mm	33.72 in	2231.64 mm	856.49 mm	87.86 in	1418 Series	Non-Vented	Drop shipped from the Manufacturer's Warehouse	87 lbs	39.5 kg
Hammond Manufacturing 1418XHHP										1418 Series					Rails
Hammond Manufacturing 1418K6		Gray	Metal, Steel				762 mm	609.6 mm				Drop shipped from the Manufacturer's Warehouse	76 lbs	34.5 kg		IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Hinged Door, Lid	14 Gauge	720 in˛	4645 cm˛	Interior Panels, Mounting Flange	152.4 mm	6 in	Box	30 "	24 "
Hammond Manufacturing 1418N4SSM16		Natural				30 "	914.4 mm	762 mm	36 "			Drop shipped from the Manufacturer's Warehouse	149 lbs	67.6 kg		12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	Hinged Door, Lid	14 Gauge	1080 in²	6968 cm²	Interior Panels, Mounting Flange	406.4 mm	16 in	Box
Hammond Manufacturing 1418N4J8		Gray	Metal, Steel			24 "	609.6 mm	609.6 mm	24 in							IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508	Hinged Door, Lid	14 Gauge	576 in²	3716 cm²	Interior Panels, Mounting Flange	203.2 mm	8 "	Box
Hammond Manufacturing 1418N4S16S16		Natural				36 in	1219.2 mm		48 "			Drop shipped from the Manufacturer's Warehouse	290 lbs	131.5 kg		IP66, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Hinged Door, Lid	14 Gauge	1728 in²	1.115 m²	Interior Panels, Mounting Flange	406.4 mm	16 in	Box			914.4 mm
Hammond Manufacturing 1418CA8		Gray	Metal, Steel			12 "	508 mm	304.8 mm	20 "				35 lbs	15.9 kg		IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Hinged Door, Lid	14 Gauge	240 in²	1548 cm²	Interior Panels, Mounting Flange	203.2 mm	8 "	Box
Hammond Manufacturing 1418N4ALC6		Natural	Aluminum, Metal			16 in	508 mm	406.4 mm	20 "				16 lbs	7.3 kg		IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 4, UL-508	Hinged Door, Lid	0.1 in	320 in²	2065 cm˛	Interior Panels, Mounting Flange	152.4 mm	6 in	Box				2.54 mm
Hammond Manufacturing 1418K8		Gray	Metal, Steel				762 mm	609.6 mm				Drop shipped from the Manufacturer's Warehouse	82 lbs	37.2 kg		IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Hinged Door, Lid	14 Gauge	720 in˛	4645 cm˛	Interior Panels, Mounting Flange	203.2 mm	8 "	Box	30 "	24 "
Hammond Manufacturing 1418THHP										1418 Series					Rails
