15EDGLC-3.5-03P-14-00L(H)

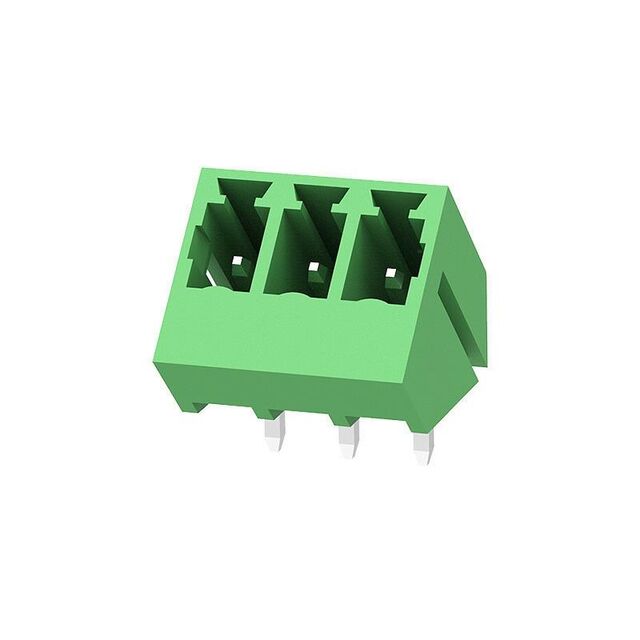

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 45° Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 15EDGLC-3.5-03P-14-00L(H) |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - IEC | 12 A |
| Current - UL | 8 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plug Wire Entry Angle | 45 ° |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
