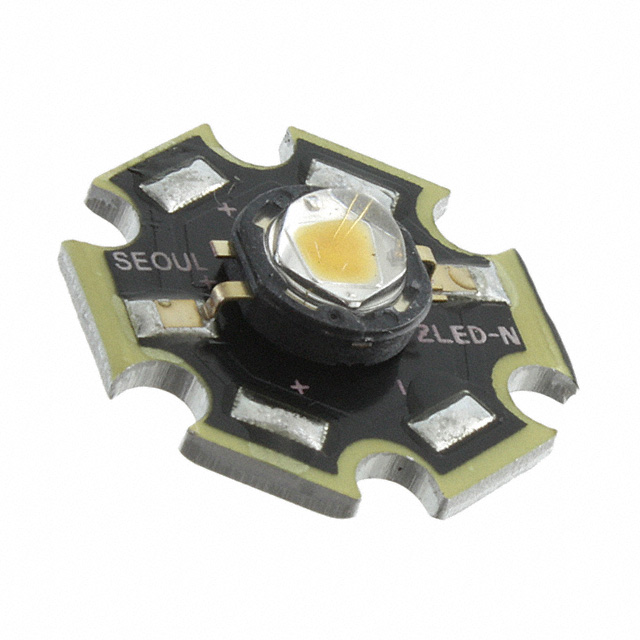

N42182-08-FA

Obsolete

Seoul Semiconductor

LED MOD Z POWER WH STARBRD

Search across all available documentation for this part.

Obsolete

Seoul Semiconductor

LED MOD Z POWER WH STARBRD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Z Power White, Warm Starboard

Technical documentation and resources

Specification	N42182-08-FA	N42182 Series

CCT (K)	2700 K	2700 K
Color	White, Warm	White, Warm
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	93	93
Current - Max [Max]	800 mA	800 mA
Current - Test	350 mA	350 mA
Height [z]	6.78 mm	6.78 mm
Lens Type	Domed	Domed
Light Emitting Surface (LES)	-	5.6 mm
Lumens/Watt @ Current - Test	47 lm/W	47 - 58 lm/W
Luminous Flux @ Current/Temperature	53 lm	53 - 66 lm
Size / Dimension	-	19.9 mm
Size / Dimension [x]	19.9 mm	19.9 mm
Size / Dimension [y]	19.9 mm	19.9 mm
Type	LED Module	LED Module
Viewing Angle	124 °	124 °
Voltage - Forward (Vf) (Typ)	3.25 V	3.25 V

Part	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Type	Viewing Angle	Height [z]	Lens Type	Lumens/Watt @ Current - Test	Color	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Size / Dimension [diameter]	Configuration	Luminous Flux @ Current/Temperature	Current - Test	CCT (K)	Size / Dimension [y]	Size / Dimension [x]
Seoul Semiconductor N42182-T1	5.6 mm	93	LED Module	124 °	6.78 mm	Domed	58 lm/W	Warm, White	3.25 V	800 mA	19.9 mm	Starboard	66 lm	350 mA
Seoul Semiconductor N42182-08-FA		93	LED Module	124 °	6.78 mm	Domed	47 lm/W	Warm, White	3.25 V	800 mA		Starboard	53 lm	350 mA	2700 K	19.9 mm	19.9 mm
