EGG.3B.655.ZZM
ActiveLEMO

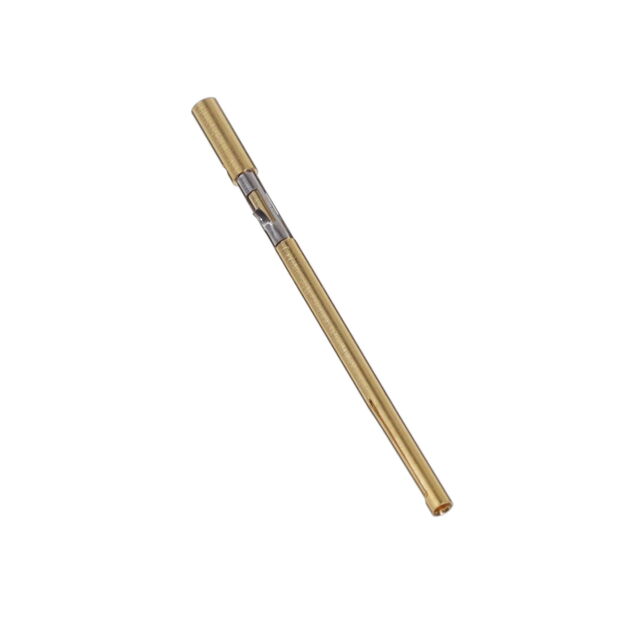

CONTACT SOCKET 22-26AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.3B.655.ZZM
ActiveLEMO
CONTACT SOCKET 22-26AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.3B.655.ZZM | EGG.3B Series |
|---|---|---|
| Color | - | Silver |
| Connector Type | - | Receptacle, Female Sockets, Female Sockets, Insert, Insert Shell |
| Contact Finish | Gold | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 59 Áin |
| Contact Finish Thickness - Mating | - | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Contact Shape | - | Circular |
| Contact Size | 0.7 mm | 0.7 - 3 mm |
| Contact Termination | Crimp | Crimp |
| Contact Type | Socket | Socket, Crimp and Solder Cup |
| Current Rating (Amps) | - | 3.5 - 35 A |
| Fastening Type | - | Push-Pull, Detent Lock |
| Features | - | Insert Only, Requires Shell |
| Housing Color | - | Black |
| Ingress Protection | - | IP50 |
| Insert Material | - | Polyetheretherketone (PEEK) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included; Insert Not Included |
| Number of Positions | - | 16 |
| Number of Positions | - | 2 - 30 |
| Number of Positions | - | 1 - 2 |
| Number of Positions | - | 12 |
| Number of Positions | - | 4 - 16 |
| Number of Positions | - | 2 |
| Number of Positions | - | 2 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 250 °C |
| Orientation | - | G |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome, Anodized |
| Shell Material | - | Brass, Aluminum Alloy |
| Shell Size - Insert | - | 23 - 856 |
| Shielding | - | Unshielded, Shielded |
| Termination | - | Solder, Crimp |
| Type | Signal, Machined | Signal, Machined, For Female Sockets |
| Wire Gauge or Range - AWG [Max] | 26 AWG | 18 - 32 AWG |
| Wire Gauge or Range - AWG [Min] | 22 AWG | 14 - 28 AWG |
| Wire Gauge or Range - mm˛ | - | 0.04 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.09 mm˛ |
| Wire Gauge or Range - mm² [Max] | 0.34 mm² | 0.09 - 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² | 0.04 - 1 mm² |
EGG.3B Series
CONTACT SOCKET 18-20AWG CRIMP
| Part | Contact Material | Contact Termination | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Contact Size | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Type | Contact Finish | Type | Note | Ingress Protection | Contact Shape | Shielding | Shell Size - Insert | Number of Positions | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Mounting Feature | Material Flammability Rating | Fastening Type | Contact Finish - Mating | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Primary Material | Current Rating (Amps) | Color | Connector Type | Insert Material | Features | Termination | Mounting Type | Housing Color | Number of Positions [custom] | Number of Positions [custom] | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.3B.665.ZZM | Bronze | Crimp | 1 mm² | 0.5 mm² | 1.3 mm | 18 AWG | 20 AWG | Socket | Gold | Machined, Signal | ||||||||||||||||||||||||||||||||||
LEMO EGG.3B.416.YL | 0.9 mm | Crimp and Solder Cup | For Female Sockets | Note: Contacts Not Included; Insert Only, Requires Shell | IP50 | Circular | Unshielded | 416 | 16 | G | -55 °C | 250 °C | ||||||||||||||||||||||||||||||||
LEMO EGG.3B.410.YL | 1.3 mm | Crimp and Solder Cup | For Female Sockets | Note: Contacts Not Included; Insert Only, Requires Shell | IP50 | Circular | Unshielded | 410 | G | -55 °C | 250 °C | 10 | ||||||||||||||||||||||||||||||||
LEMO EGG.3B.306.CLL | Bronze | IP50 | Shielded | 306 | G | -55 °C | 250 °C | 6 | Bulkhead - Rear Side Nut | UL94 V-0 | Push-Pull | Gold | Brass | 59 Áin | 1.5 Ám | Chrome | Metal | 17 A | Silver | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | |||||||||||||||||||||||
LEMO EGG.3B.305.ZLL | Bronze | IP50 | Shielded | 305 | G | -55 °C | 250 °C | UL94 V-0 | Gold | 59 Áin | 1.5 Ám | 19 A | Female Sockets, Insert | Polyetheretherketone (PEEK) | Insert Only, Requires Shell | |||||||||||||||||||||||||||||
LEMO EGG.3B.326.ZLL | Bronze | IP50 | Shielded | 326 | G | -55 °C | 250 °C | 26 | UL94 V-0 | Gold | 59 Áin | 1.5 Ám | 4 A | Female Sockets, Insert | Polyetheretherketone (PEEK) | Insert Only, Requires Shell | ||||||||||||||||||||||||||||
LEMO EGG.3B.320.CLN | Bronze | IP50 | Shielded | 320 | G | -55 °C | 250 °C | 20 | Bulkhead - Rear Side Nut | UL94 V-0 | Push-Pull | Gold | Brass | 59 Áin | 1.5 Ám | Chrome | Metal | 6 A | Silver | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | Solder | Panel Mount, Through Hole | |||||||||||||||||||||
LEMO EGG.3B.200.LC | Contacts Not Included; Insert Not Included | IP50 | Shielded | G | -55 °C | 250 °C | Bulkhead - Rear Side Nut | Detent Lock, Push-Pull | Aluminum Alloy | Anodized | Insert Shell | Black | ||||||||||||||||||||||||||||||||
LEMO EGG.3B.812.CLL1 | Bronze | IP50 | Shielded | 812 | G | -55 °C | 250 °C | Bulkhead - Rear Side Nut | UL94 V-0 | Push-Pull | Gold | Brass | 59 Áin | 1.5 Ám | Chrome | Metal | 9 A | Silver | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 1 | 12 | ||||||||||||||||||||||
LEMO EGG.3B.404.YL | 2 mm | Crimp and Solder Cup | For Female Sockets | Note: Contacts Not Included; Insert Only, Requires Shell | IP50 | Circular | Unshielded | 404 | G | -55 °C | 250 °C | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.86 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.05 | |||
| 50 | $ 3.75 | |||
| 100 | $ 3.48 | |||
| 250 | $ 3.16 | |||
| 500 | $ 2.94 | |||
| 1000 | $ 2.75 | |||
| 2500 | $ 2.52 | |||
Description
General part information
EGG.3B Series
Socket Contact 22-26 AWG Size 0.7mm Crimp Gold
Documents
Technical documentation and resources
