MAXQ615-F00+T
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 16BIT 48KB FLASH 16TQFN
Deep-Dive with AI
Search across all available documentation for this part.
MAXQ615-F00+T
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 16BIT 48KB FLASH 16TQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXQ615-F00+T | MAXQ615 Series |
|---|---|---|
| Connectivity | I2C, SPI | I2C, SPI |
| Core Processor | MAXQ20S | MAXQ20S |
| Core Size | 16-Bit | 16-Bit |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 12 | 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |

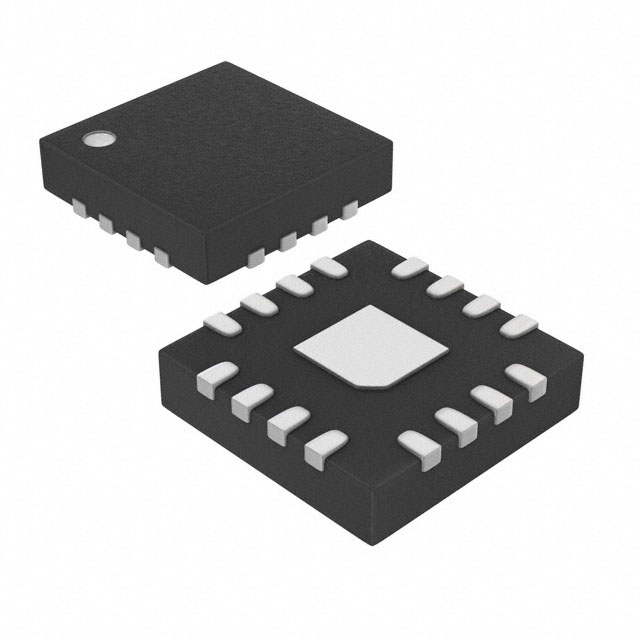

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Program Memory Size | 48 KB | 48 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 2K x 8 | 2K x 8 |
| Speed | 20 MHz | 20 MHz |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.4 V | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXQ615 Series
IC MCU 16BIT 48KB FLASH 16TQFN
| Part | Core Size | Operating Temperature [Max] | Operating Temperature [Min] | RAM Size | Speed | Program Memory Size | Program Memory Type | Oscillator Type | Connectivity | Number of I/O | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Package / Case | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXQ615-F00+T | 16-Bit | 85 °C | -40 °C | 2K x 8 | 20 MHz | 48 KB | FLASH | Internal | I2C, SPI | 12 | 16-TQFN (4x4) | 2.4 V | 3.6 V | Surface Mount | 16-WQFN Exposed Pad | MAXQ20S |
Analog Devices Inc./Maxim Integrated MAXQ615-F00+ | 16-Bit | 85 °C | -40 °C | 2K x 8 | 20 MHz | 48 KB | FLASH | Internal | I2C, SPI | 12 | 16-TQFN (4x4) | 2.4 V | 3.6 V | Surface Mount | 16-WQFN Exposed Pad | MAXQ20S |
Description
General part information
MAXQ615 Series
MAXQ20S MAXQ® Microcontroller IC 16-Bit 20MHz 48KB (24K x 16) FLASH 16-TQFN (4x4)
Documents
Technical documentation and resources
No documents available
