29280B242JO0
ActiveCornell Dubilier Knowles
TRANSMITTING MICA
29280B242JO0
ActiveCornell Dubilier Knowles
TRANSMITTING MICA
Description
General part information
29280B242JO0

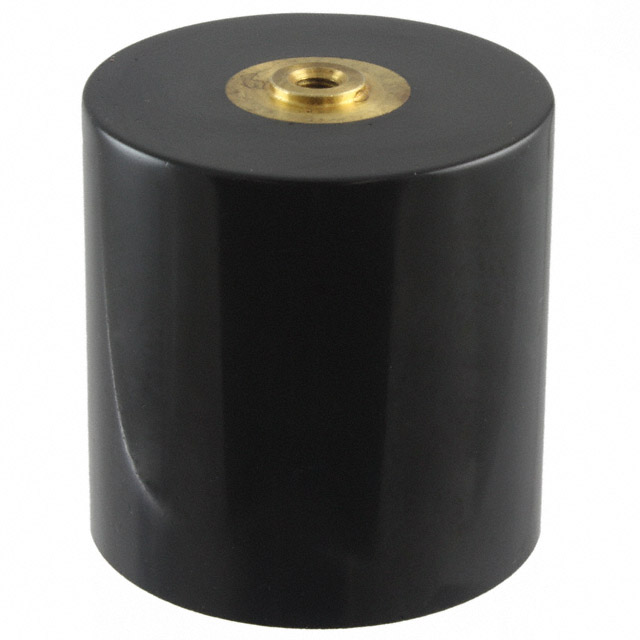

2400 pF Mica Capacitor 8 kV Disk, Metal Fitting - Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | 29280B242JO0 |
|---|---|
| Capacitance | 2400 pF |
| Dielectric Material | Mica |
| Features | General Purpose |
| Height - Seated (Max) | 2.562 in |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension Diameter | 2.5 in |
| Tolerance | 5 % |
| Voltage - Rated | 8 kV |
