M3UYK-2040K
Active3M
IDC CABLE - MKS20K/MC20F/MPD20K
Deep-Dive with AI
Search across all available documentation for this part.
M3UYK-2040K
Active3M
IDC CABLE - MKS20K/MC20F/MPD20K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3UYK-2040K | M3UYK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug) | Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug) |
| Length | - | 1.52 - 508 mm |
| Length | - | 1.67 - 5 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 1.5 - 3.34 ft |
| Number of Positions | 20 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3UYK Series
IDC CABLE - MKS10K/MC10M/MPD10K
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Length [x] | Length [x] | Number of Rows | Pitch - Connector | Pitch - Connector | Cable Termination | Color | Number of Positions | Shielding | Pitch - Cable | Pitch - Cable | Features | Length | Length | Number of Positions | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 457.2 mm | 1.5 ft | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | 10 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Twisted Pair (Flat) | 26 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 508 mm | 1.67 ft | ||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 152.4 mm | 16 | 6 " | 0.5 ' | |||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 914.4 mm | 3 ft | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | 24 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 914.4 mm | 3 ft | 2 | 0.1 in | 2.54 mm | IDC | 10 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | |||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 1.02 m | 3.34 ft | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Twisted Pair (Flat) | 50 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 457.2 mm | 1.5 ft | 2 | 0.1 in | 2.54 mm | IDC | 34 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | |||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | 50 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 152.4 mm | 6 " | 0.5 ' | |||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Twisted Pair (Flat) | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 508 mm | 1.67 ft | 16 | ||||||
Gold | 0.76 Ám | 30 Áin | Socket to Plug | 1.02 m | 3.34 ft | 2 | 0.1 in | 2.54 mm | IDC | Multiple, Twisted Pair (Flat) | 20 | Unshielded | 0.05 " | 1.27 mm | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.17 | |
| 10 | $ 21.73 | |||
| 25 | $ 19.69 | |||
| 50 | $ 18.31 | |||
| 100 | $ 17.05 | |||
| 250 | $ 15.58 | |||
| 500 | $ 14.58 | |||
Description
General part information
M3UYK Series

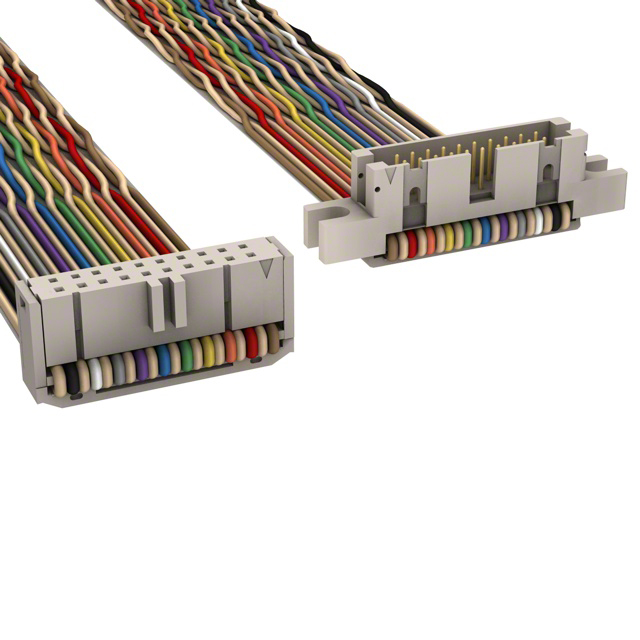

20 Position Cable Assembly Rectangular Socket to Plug 3.34' (1.02m)
