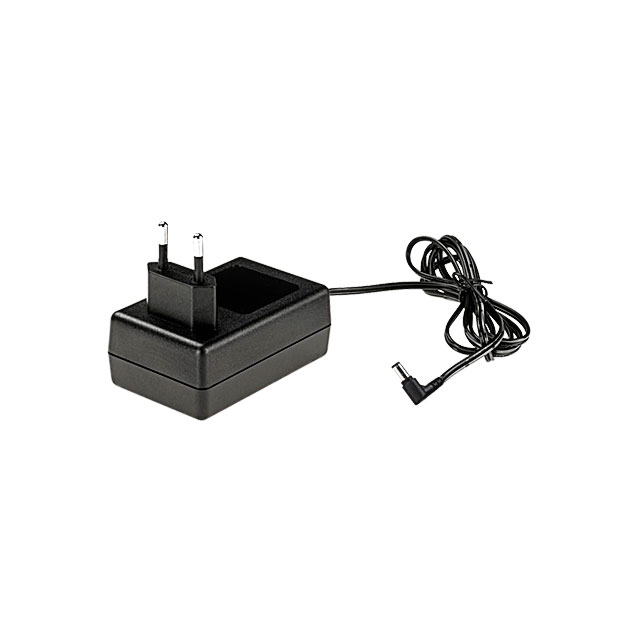

15DYS830-300100W-2-2.5

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 30V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15DYS830-300100W-2-2.5

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 30V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	80	$ 9.33

Description

General part information

15DYS830 Series

30V 30 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15DYS830-300100W-2-2.5	15DYS830 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, TUV	CE, TUV, cULus, CE, UL, TUV
Cord Length	-	1.5 m
Cord Length	-	59 in
Current - Output (Max) [Max]	1 A	1 - 4 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II), Wall Mount (Class I)
Input Connector	CEE 7/16	CEE 7/16, NEMA 1-15P, Multi-Blade (Included), BS 1363
Input Type	Fixed Blade	Fixed Blade, Multi-Blade (Included)
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	-	Barrel Plug
Output Connector	-	2.1 - 5.5 mm
Output Connector	-	12 mm
Polarization	-	Positive Center
Power (Watts)	30 W	20 - 30 W
Region Utilized	Europe	Europe, North America, International, United Kingdom
Size / Dimension [x]	3.02 "	3.02 "
Size / Dimension [x]	76.8 mm	76.8 mm
Size / Dimension [y]	48 mm	47.5 - 50 mm
Size / Dimension [y]	1.89 in	1.87 - 1.96 in
Size / Dimension [z]	1.22 in	1.22 - 1.38 in
Size / Dimension [z]	31 mm	31 - 35 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	30 VDC	5 - 30 VDC
Weight	-	200.03 g
Weight	-	0.441 lb

15DYS830 Series

AC/DC WALL MOUNT ADAPTER 30V 30W

Part	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Operating Temperature [Max]	Efficiency	Standard Number	Input Connector	Input Type	Form	Current - Output (Max) [Max]	Applications	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Weight	Weight
IDEAL POWER 15DYS830-300100W-2-2.5	CE, TUV	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	Europe	40 °C	Level VI	62368-1	CEE 7/16	Fixed Blade	Wall Mount (Class II)	1 A	ITE (Commercial)	30 VDC	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-1-2.5	cULus	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	North America	40 °C	Level VI	62368-1	NEMA 1-15P	Fixed Blade	Wall Mount (Class II)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-050400W-K	CE, cULus, TUV, UL	20 W	47.5 mm	1.38 in	3.02 "	1.87 "	76.8 mm	35 mm	International	40 °C	Level VI	62368-1	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount (Class II)	4 A	ITE (Commercial)	5 V	90 VAC	264 VAC	1.5 m	59 in	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	200.03 g	0.441 lb
IDEAL POWER 15DYS830-240125W-1-2.5	cULus	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	North America	40 °C	Level VI	62368-1	NEMA 1-15P	Fixed Blade	Wall Mount (Class II)	1.25 A	ITE (Commercial)	24 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-050400W-2-2.5	CE, TUV	20 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	Europe	40 °C	Level VI	62368-1	CEE 7/16	Fixed Blade	Wall Mount (Class II)	4 A	ITE (Commercial)	5 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-3-2.5	CE	30 W	50 mm	1.22 in	3.02 "	1.96 "	76.8 mm	31 mm	United Kingdom	40 °C	Level VI	62368-1	BS 1363	Fixed Blade	Wall Mount (Class I)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-K	CE, cULus, TUV, UL	30 W	47.5 mm	1.38 in	3.02 "	1.87 "	76.8 mm	35 mm	International	40 °C	Level VI	62368-1	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount (Class II)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC	1.5 m	59 in	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	200.03 g	0.441 lb
