8454 010100

Active

Belden Inc.

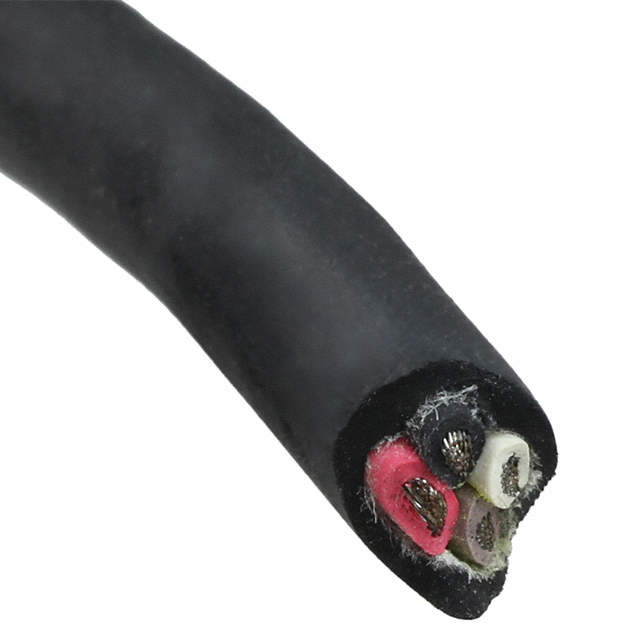

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 4 CONDUCTOR, 18 AWG, 0.82 MM², 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications +1

8454 010100

Active

Belden Inc.

MULTICONDUCTOR CABLE, PORTABLE CORD, UNSHIELDED, 4 CONDUCTOR, 18 AWG, 0.82 MM², 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8454 010100

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature	60 °C
Wire Gauge	18 AWG

8454 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Operating Temperature	Length [x]	Length [x]	Jacket Color	Conductor Insulation	Number of Conductors	Voltage	Usage	Ratings	Length	Length
Belden Inc. 8454 010100	41 strands	34 AWG	0.914 mm	0.036 in	18 AWG	Copper Tinned	6.73 mm	0.265 in	Rubber	Multi-Conductor	60 °C	30.5 m	100 ft	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	4
Belden Inc. 8454 010500	41 strands	34 AWG	0.902 mm	0.0355 in	18 AWG	Copper Tinned	6.73 mm	0.265 in	Rubber	Multi-Conductor		152.4 m	500 '	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	4	300 V	Cord and Cordset	UL Style 4097
Belden Inc. 8454 010U500	41 strands	34 AWG	0.902 mm	0.0355 in	18 AWG	Copper Tinned	6.73 mm	0.265 in	Rubber	Multi-Conductor		152.4 m	500 '	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	4	300 V	Cord and Cordset	UL Style 4097
Belden Inc. 8454 0101000	41 strands	34 AWG	0.902 mm	0.0355 in	18 AWG	Copper Tinned	6.73 mm	0.265 in	Rubber	Multi-Conductor				Black	Ethylene Propylene Terpolymer Rubber (EPDM)	4	300 V	Cord and Cordset	UL Style 4097	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 7.01
		200	$ 6.66
		300	$ 6.47
		500	$ 6.23
		700	$ 6.07
		1000	$ 5.91
Newark	Spool of 100	1	$ 848.35
		5	$ 815.54
		10	$ 787.42

Description

General part information

8454 Series

The 8454 010100 is a 4-conductor black unshielded Portable Cordage Cable with ethylene propylene diene monomer rubber (EPDM) insulation, tinned copper conductors and rubber jacket.

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet

Technical Data Sheet EN

Datasheet
