EN3P5FRAPCBW
ActiveSwitchcraft Inc.

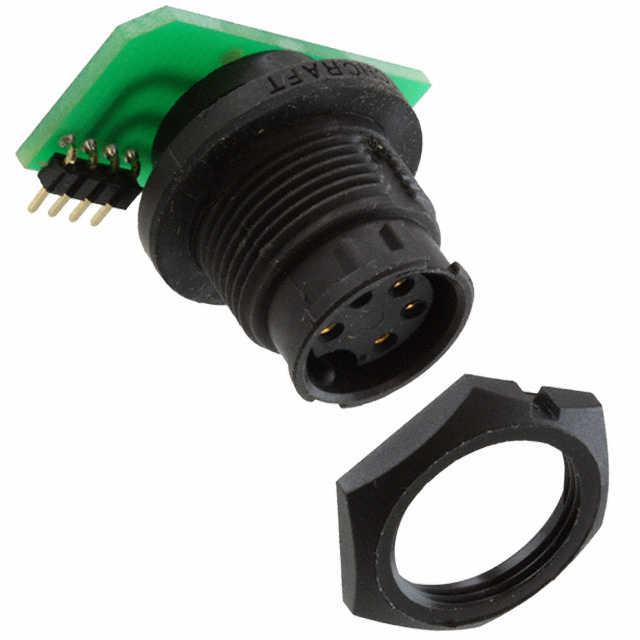

CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P5FRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P5FRAPCBW | EN3P5F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Solder, Crimp, Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P5F Series
Standard Circular Connector 2P F PANEL TYPE #16
| Part | Current Rating (Amps) | Color | Insert Material | Contact Material | Shielding | Contact Finish - Mating | Material Flammability Rating | Connector Type | Orientation | Applications | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Fastening Type | Primary Material | Voltage Rating | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P5FX | 7.5 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | ||
Switchcraft Inc. EN3P5FKX | 7.5 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | ||
Switchcraft Inc. EN3P5FPX | 7.5 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | Panel Mount, Through Hole | Solder |
Switchcraft Inc. EN3P5FRAPCX | 4 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | Panel Mount, Right Angle, Through Hole | Solder |
Switchcraft Inc. EN3P5FCX | 7.5 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | Crimp | |
Switchcraft Inc. EN3P5FRAPCBN | 4 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P5FRAPCBW | 4 A | Black | Elastomer | Copper Alloy | Unshielded | Gold | UL94 V-0 | Receptacle, Female Sockets | Keyed | General Purpose, Instrumentation, Marine, Medical | Bulkhead - Front Side Nut | 65 °C | -40 °C | IP66/IP68 | Bayonet Lock | Plastic | 250 VAC | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
