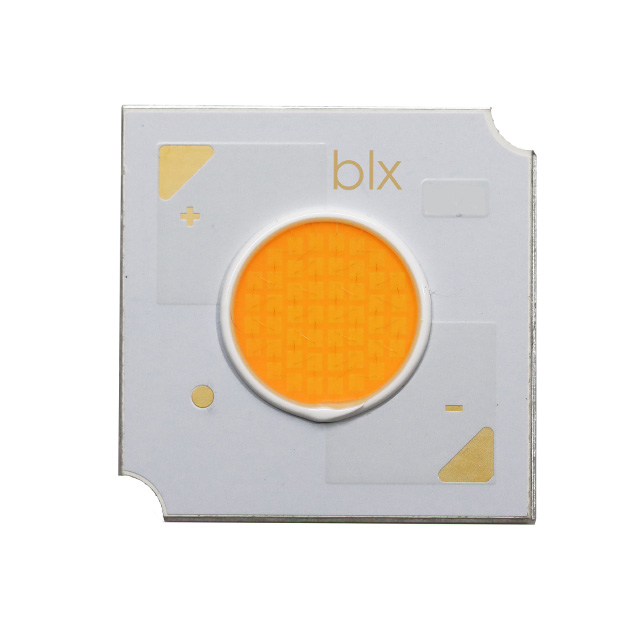

BXRH-30G300C-D-73

Active

BRIDGELUX

LED COB V9 HD WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-30G300C-D-73

Active

BRIDGELUX

LED COB V9 HD WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	600	$ 3.08

Description

General part information

BXRH-30 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V9 HD Array White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRH-30G300C-D-73	BXRH-30 Series

CCT (K)	3000 K	3000 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max [Max]	960 mA	1.05 - 960 mA
Current - Test	-	1 - 750 mA
Height [z]	1.63 mm	1.63 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9.2 mm	3.8 - 12.6 mm
Lumens/Watt @ Current - Test	93 lm/W	79 - 142 lm/W
Luminous Flux @ Current/Temperature	2315 lm	291 - 5380 lm
Size / Dimension [x]	19 mm	12.5 - 19 mm
Size / Dimension [y]	19 mm	12.5 - 19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	112 - 120 °
Voltage - Forward (Vf) (Typ)	35.4 V	17.6 - 36.6 V

BXRH-30 Series

LED COB V6 HD WARM WHT SQ 3000K

Part	Lens Type	CCT (K)	Type	CRI (Color Rendering Index)	Current - Max [Max]	Viewing Angle	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Height [z]	Current - Test	Configuration	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test
BRIDGELUX BXRH-30G1000-B-83	Flat	3000 K	Chip On Board (COB)	90	600 mA	120 °	6.6 mm	36.6 V	Warm, White	1459 lm	1.63 mm	350 mA	Square	114 lm/W
BRIDGELUX BXRH-30G10H0-G-83	Flat	3000 K	Chip On Board (COB)	90	1.2 A	120 °	6.6 mm	18.3 V	Warm, White	1522 lm	1.63 mm		Square	119 lm/W
BRIDGELUX BXRH-30G0600-B-83	Flat	3000 K	Chip On Board (COB)	90	600 mA	120 °	4.8 mm	18.3 V	Warm, White	705 lm	1.63 mm	350 mA	Square	110 lm/W	12.5 mm	12.5 mm
BRIDGELUX BXRH-30G300C-D-83	Flat	3000 K	Chip On Board (COB)	90	1.2 A	120 °	8.8 mm	36.6 V	Warm, White	2891 lm	1.63 mm		Square	113 lm/W	19 mm	19 mm
BRIDGELUX BXRH-30E0300-B-83	Flat	3000 K	Chip On Board (COB)	80	360 mA	120 °	3.8 mm	17.6 V	Warm, White	396 lm	1.63 mm		Square	141 lm/W	12.5 mm	12.5 mm
BRIDGELUX BXRH-30S1001-G-72	Flat	3000 K	Chip On Board (COB)	98	960 mA	120 °	6.6 mm	18.2 V	Warm, White	1223 lm	1.63 mm		Square	96 lm/W
BRIDGELUX BXRH-30H0600-A-73	Flat	3000 K	Chip On Board (COB)	97	240 mA	120 °	5.2 mm	35.4 V	Warm, White	498 lm	1.63 mm	175 mA	Square	80 lm/W	12.5 mm	12.5 mm	85 °C
BRIDGELUX BXRH-30E1000-C-23	Flat	3000 K	Chip On Board (COB)	80	1.05 A	112 °	6.6 mm	18.3 V	Warm, White	1373 lm	1.7 mm	750 mA	Square	100 lm/W	13.35 mm	13.35 mm
BRIDGELUX BXRH-30G1000-G-83	Flat	3000 K	Chip On Board (COB)	90	1.2 A	120 °	6.6 mm	18.3 V	Warm, White	1459 lm	1.63 mm		Square	114 lm/W
BRIDGELUX BXRH-30E3000-D-83	Flat	3000 K	Chip On Board (COB)	80	1.2 A	120 °	8.8 mm	36.6 V	Warm, White	3630 lm	1.63 mm		Square	142 lm/W	19 mm	19 mm
