RASH10P

Active

Switchcraft Inc.

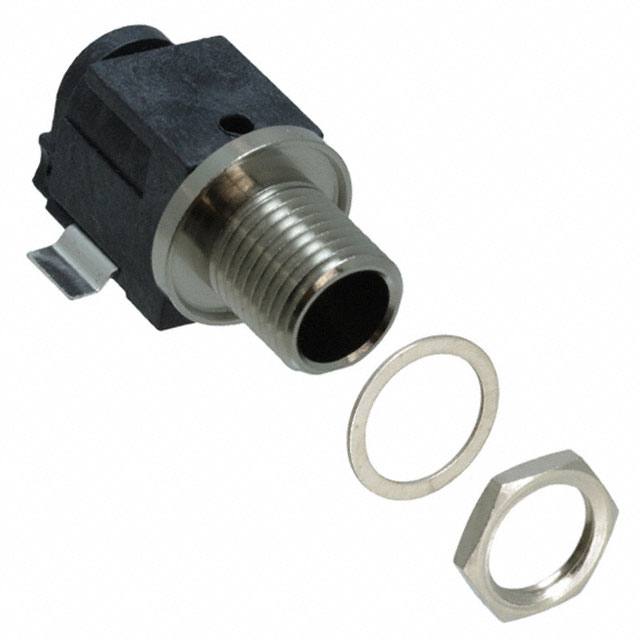

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RASH10P	RASH10 Series

Actual Diameter [diameter]	0.252 ", 0.079 in	0.079 - 0.252 "
Actual Diameter [diameter]	2 mm, 6.4 mm	2 - 6.4 mm
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	11 A	11 A
Features	Board Guide	Board Guide
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Includes	Connector, Washer, Nut	1 Washer, 1 O-Ring, 1 Nut, 1 Connector, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Ingress Protection	-	IP68
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Surface Mount, Through Hole	Surface Mount, Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Thread Size	5/16"-32	5/16"-32
Voltage - Rated	24 VDC	24 VDC

CONN PWR JACK 2X5.5MM SOLDER

Part	Number of Positions/Contacts	Current Rating (Amps)	Shielding	Body Material	Contact Material	Internal Switch(s)	Voltage - Rated	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Housing Material	Connector Type	Ingress Protection	Gender	Mounting Feature	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Thread Size	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Mounting Type	Features
Switchcraft Inc. RASH10S	2 Conductors, 3 Conductors	11 A	Unshielded	Copper Alloy	Copper Alloy	Normally Closed, Single Switch	24 VDC	0.079 in, 0.217 "	2 mm, 5.5 mm	Black, Silver	Thermoplastic	Jack	IP68	Male	Bulkhead - Front Side Nut	Solder	-40 °C	105 ░C	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	5/16"-32	0.079 in, 0.252 "	2 mm, 6.4 mm	Silver	Surface Mount, Through Hole
Switchcraft Inc. RASH10P	2 Conductors, 3 Conductors	11 A	Unshielded	Copper Alloy	Copper Alloy	Normally Closed, Single Switch	24 VDC	0.079 in, 0.217 "	2 mm, 5.5 mm	Black, Silver	Thermoplastic	Jack		Male	Bulkhead - Front Side Nut	Solder	-40 °C	105 ░C	Connector, Nut, Washer	5/16"-32	0.079 in, 0.252 "	2 mm, 6.4 mm	Silver	Surface Mount, Through Hole	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Through Hole
