96BB2-056-R

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.005A 12V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 16KEY 0.005A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

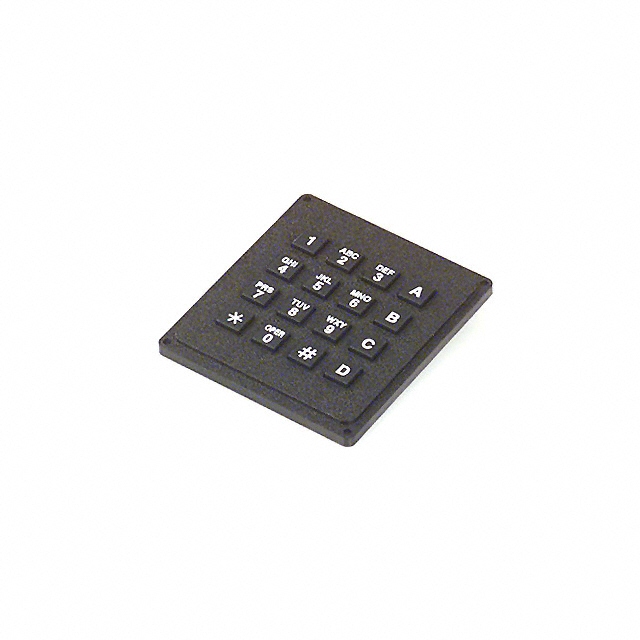

Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	96BB2-056-R	96BB2 Series

Contact Rating @ Voltage	0.005 A, 12 VDC	0.005 - 12 A
Illumination	Non-Illuminated	Non-Illuminated, Illuminated
Ingress Protection	IP40	IP40
Key Color	Black	White, Black
Key Type	Polymer	Polymer
Legend	Telephone Format, A ~ D	0 ~ 9, A ~ F, Telephone Format, A ~ D, Telephone Format, Function Keys
Legend Color	White	Black, White
Legend Type	Fixed	Fixed
Matrix (Columns x Rows) [custom]	4	4
Matrix (Columns x Rows) [custom]	4	4
Mounting Type	Panel Mount, Rear	Panel Mount, Front, Panel Mount, Rear
Number of Keys	16	16
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Operational Life	1000000 Cycles	1000000 Cycles
Output Type	1.81 mOhm	1.81 mOhm
Panel Cutout Dimensions [x]	68.58 mm	68.58 mm
Panel Cutout Dimensions [y]	63.5 mm	63.5 mm
Switch Type	Conductive Rubber	Conductive Rubber
Termination Style	Pin Header	Pin Header

SWITCH KEYPAD 16KEY 0.005A 12V

Part	Termination Style	Ingress Protection	Number of Keys	Key Type	Mounting Type	Illumination	Switch Type	Operational Life	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Contact Rating @ Voltage	Legend	Output Type	Legend Type	Operating Temperature [Min]	Operating Temperature [Max]	Key Color	Legend Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Grayhill Inc. 96BB2-002-F	Pin Header	IP40	16	Polymer	Panel Mount, Front	Non-Illuminated	Conductive Rubber	1000000 Cycles	4	4	0.005 A, 12 VDC	0 ~ 9, A ~ F	1.81 mOhm	Fixed	-30 ░C	80 C	White	Black
Grayhill Inc. 96BB2-006-R-EL	Pin Header	IP40	16	Polymer	Panel Mount, Rear	Illuminated	Conductive Rubber	1000000 Cycles	4	4	0.005 A, 12 VDC	Telephone Format, A ~ D	1.81 mOhm	Fixed	-30 ░C	80 C	White	Black	68.58 mm	63.5 mm
Grayhill Inc. 96BB2-008-F	Pin Header	IP40	16	Polymer	Panel Mount, Front	Non-Illuminated	Conductive Rubber	1000000 Cycles	4	4	0.005 A, 12 VDC	Function Keys, Telephone Format	1.81 mOhm	Fixed	-30 ░C	80 C	White	Black
Grayhill Inc. 96BB2-056-R	Pin Header	IP40	16	Polymer	Panel Mount, Rear	Non-Illuminated	Conductive Rubber	1000000 Cycles	4	4	0.005 A, 12 VDC	Telephone Format, A ~ D	1.81 mOhm	Fixed	-30 ░C	80 C	Black	White	68.58 mm	63.5 mm
Grayhill Inc. 96BB2-006-R	Pin Header	IP40	16	Polymer	Panel Mount, Rear	Non-Illuminated	Conductive Rubber	1000000 Cycles	4	4	0.005 A, 12 VDC	Telephone Format, A ~ D	1.81 mOhm	Fixed	-30 ░C	80 C	White	Black	68.58 mm	63.5 mm
