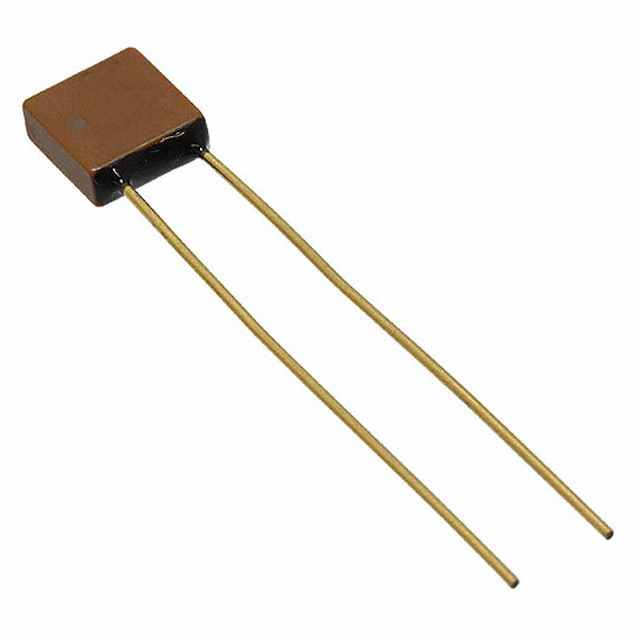

VRR07T102KGA

Active

KEMET

CAP CER 1000PF 2KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 1000PF 2KV X7R RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VRR07T102KGA	VRR07T Series

Applications	General Purpose	General Purpose
Capacitance	0.001 µF	0.001 - 1200 pF
Features	High Voltage, High Temperature	High Voltage, High Temperature
Height - Seated (Max) [Max]	0.3 in	0.3 in
Height - Seated (Max) [Max]	7.62 mm	7.62 mm
Lead Spacing	5.08 mm	5.08 mm
Lead Spacing	0.2 in	0.2 in
Lead Style	Straight	Straight
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial	Radial
Size / Dimension [x]	0.3 in	0.3 in
Size / Dimension [x]	7.62 mm	7.62 mm
Size / Dimension [y]	0.15 "	0.15 "
Size / Dimension [y]	3.81 mm	3.81 mm
Temperature Coefficient	X7R	X7R
Tolerance	10 %	10 %
Voltage - Rated	2 kV	2 kV
Voltage - Rated	2000 V	2000 V

CAP CER 1200PF 3KV X7R RADIAL

Part	Lead Style	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Features	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Applications	Temperature Coefficient	Tolerance
KEMET VRR07T122KGS	Straight	Through Hole	0.3 in	7.62 mm	2 kV	2000 V	-55 °C	200 °C	1200 pF	High Temperature, High Voltage	5.08 mm	0.2 in	0.3 in	0.15 "	3.81 mm	7.62 mm	Radial	General Purpose	X7R	10 %
KEMET VRR07T102KGA	Straight	Through Hole	0.3 in	7.62 mm	2 kV	2000 V	-55 °C	200 °C	0.001 µF	High Temperature, High Voltage	5.08 mm	0.2 in	0.3 in	0.15 "	3.81 mm	7.62 mm	Radial	General Purpose	X7R	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R Radial
