16280-3SG-311

Active

Conxall/Switchcraft

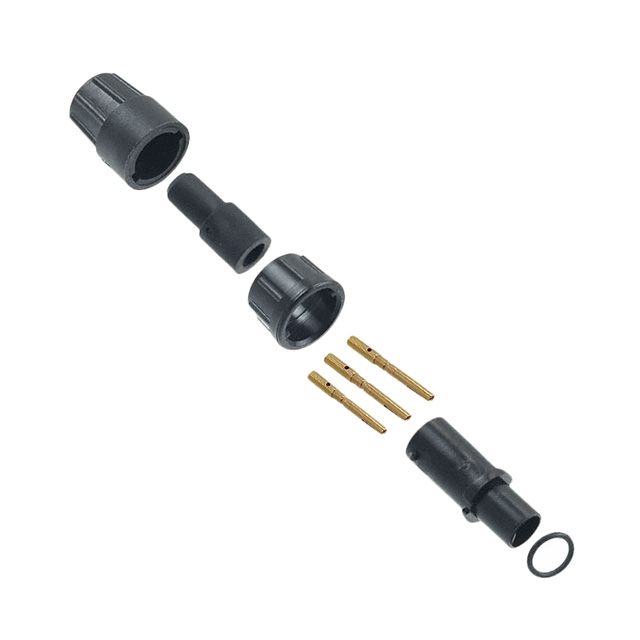

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16280-3SG-311	16280-3S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Color	Voltage Rating	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Connector Type	Backshell Material, Plating	Current Rating (Amps)	Termination	Mounting Type	Fastening Type	Orientation	Contact Finish - Mating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Applications	Primary Material	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 16280-3SG-311	Black	600 VAC	Backshell	2.29 mm	0.09 in, 0.14 in	3.56 mm	UL94 HB	Female Sockets, Plug	Thermoplastic	7.5 A	Crimp	Free Hanging (In-Line)	Bayonet Lock	Keyed	Gold	Unshielded	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical	Plastic	Copper Alloy
Conxall/Switchcraft 16280-3SG-318	Black	600 VAC	Backshell				UL94 HB	Female Sockets, Plug	Thermoplastic	7.5 A	Crimp	Free Hanging (In-Line)	Bayonet Lock	Keyed	Gold	Unshielded	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical	Plastic	Copper Alloy	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 16280-3SG-315	Black	600 VAC	Backshell				UL94 HB	Female Sockets, Plug	Thermoplastic	7.5 A	Crimp	Free Hanging (In-Line)	Bayonet Lock	Keyed	Gold	Unshielded	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Data, Industrial, Instrumentation, Medical	Plastic	Copper Alloy					0.15 in, 0.17 in	3.81 mm, 4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
