RR3402A

Active

E-Switch

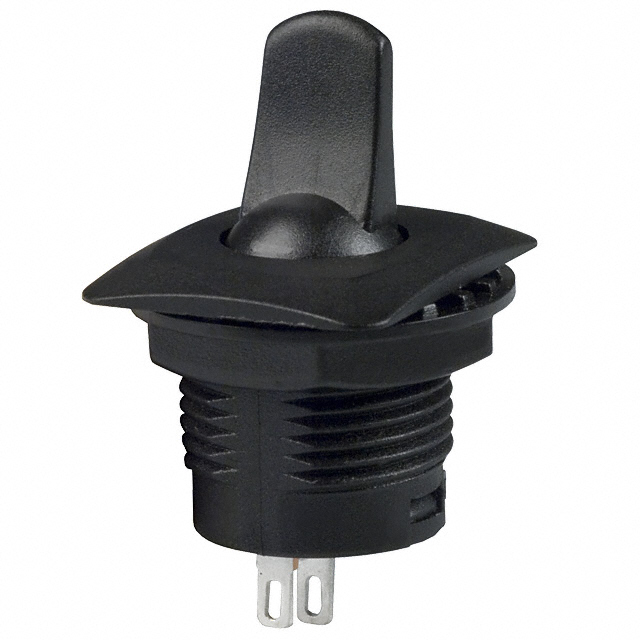

SWITCH ROCKER SPST 6A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 6A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RR3402A	- Series

Actuator Marking	No Marking	No Marking
Actuator Type	Paddle	Paddle
Circuit	SPST	SPST, SPDT, DPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	6 A	6 - 10 A
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	20000 Cycles	20000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	15 mm	15 - 18 mm
Switch Function	On-Off	On-Off, On-Off-On, On-On
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER SPST 6A 125V

Part	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Mechanical Life	Switch Function	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Marking
E-Switch RR3402A	125 V	6 A	Black	20000 Cycles	On-Off	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPST	6000 Cycles	65 °C	0 °C	Paddle	No Marking
E-Switch RR3402D	125 V	6 A	Black	20000 Cycles	On-Off-On	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPDT	6000 Cycles	65 °C	0 °C	Paddle	No Marking
E-Switch RR3405A	125 V	10 A	Black		On-Off	Solder Lug	Panel Mount, Threaded Body with Nut	18 mm	DPST				Paddle	No Marking
E-Switch RR3402C	125 V	6 A	Black	20000 Cycles	On-On	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPDT	6000 Cycles	65 °C	0 °C	Paddle	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 6A (AC) 125 V Panel Mount, Threaded Body with Nut
