UVY0J682MHD1TO

Active

Nichicon

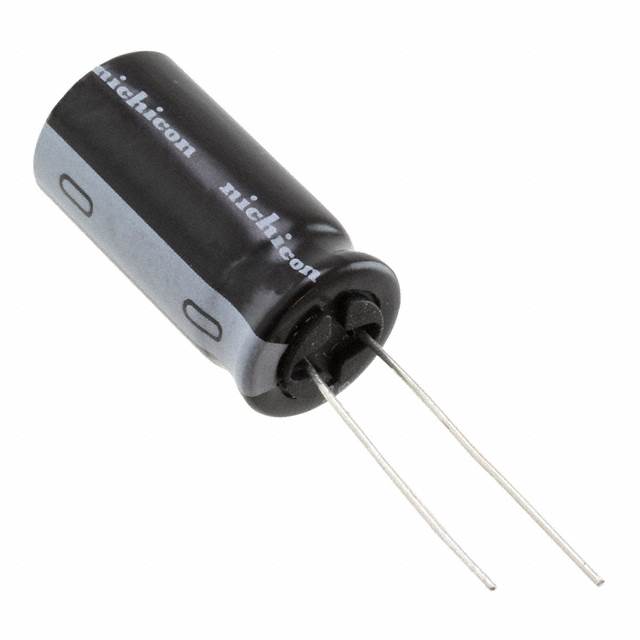

CAP ALUM 6800UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY0J682MHD1TO

Active

Nichicon

CAP ALUM 6800UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.43
	Tape & Box (TB)	500	$ 0.53
Newark	Each (Supplied on Full Reel)	1	$ 0.57
		1000	$ 0.55
		2000	$ 0.50
		4000	$ 0.45
		6000	$ 0.43
		10000	$ 0.42

Description

General part information

UVY0J Series

6800 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY0J682MHD1TO	UVY0J Series

Applications	General Purpose	General Purpose
Capacitance	6800 µF	3.3 - 22000 µF
Height - Seated (Max)	-	0.689 in
Height - Seated (Max)	-	17.5 mm
Height - Seated (Max) [Max] [z]	1.063 in	0.512 - 2.047 in
Height - Seated (Max) [Max] [z]	27 mm	13 - 52 mm
Lead Spacing	5 mm	3.5 - 10 mm
Lead Spacing	0.197 in	0.138 - 0.394 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	1.5525 A	1.5525 - 730.25 A
Ripple Current @ Low Frequency	1.35 A	1.35 - 840 A
Size / Dimension [diameter]	0.492 in	0.315 - 0.866 in
Size / Dimension [diameter]	12.5 mm	8 - 22 mm
Tolerance	20 %	20 %
Voltage - Rated	6.3 V	6.3 V

UVY0J Series

CAP ALUM 15000UF 20% 6.3V RADIAL

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UVY0J153MHD	6.3 V	7.5 mm	0.295 in	Polar	0.63 in	16 mm	20 %	2.093 A	1.28 in	32.5 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	1.82 A
Nichicon UVY0J223MHD	6.3 V	7.5 mm	0.295 in	Polar	0.709 "	18 mm	20 %	2.622 A	1.476 in	37.5 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	2.28 A	22000 µF
Nichicon UVY0J102MPD1TA	6.3 V	3.5 mm	0.138 in	Polar	0.315 "	8 mm	20 %	448.5 mA	0.512 "	13 mm	Through Hole	105 ░C	-55 °C	General Purpose	1000 Hrs	Radial, Can	390 mA	1000 µF
Nichicon UVY0J222MPD	6.3 V	5 mm	0.197 in	Polar	0.394 in	10 mm	20 %	730.25 mA			Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	635 mA	2200 µF	0.689 in	17.5 mm
Nichicon UVY0J682MHD1TO	6.3 V	5 mm	0.197 in	Polar	0.492 in	12.5 mm	20 %	1.5525 A	1.063 in	27 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	1.35 A	6800 µF
Nichicon UVY0J473MRD	6.3 V	10 mm	0.394 in	Polar	0.866 in	22 mm	20 %	3.197 A	2.047 in	52 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	2.78 A	47 mF
Nichicon UVY0J102MPD1TD	6.3 V	3.5 mm	0.138 in	Polar	0.315 "	8 mm	20 %	448.5 mA	0.512 "	13 mm	Through Hole	105 ░C	-55 °C	General Purpose	1000 Hrs	Radial, Can	390 mA	1000 µF
Nichicon UVY0J332MPD	6.3 V	5 mm	0.197 in	Polar	0.394 in	10 mm	20 %		0.866 in	22 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	840 mA	3.3 mF
Nichicon UVY0J103MHD	6.3 V	7.5 mm	0.295 in	Polar	0.63 in	16 mm	20 %	1.8975 A	1.063 in	27 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	1.65 A	10000 µF
Nichicon UVY0J222MPD1TD	6.3 V	5 mm	0.197 in	Polar	0.394 in	10 mm	20 %	730.25 mA			Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial, Can	635 mA	2200 µF	0.689 in	17.5 mm
