US681-C00005-015PG
ObsoleteTE Connectivity Measurement Specialties

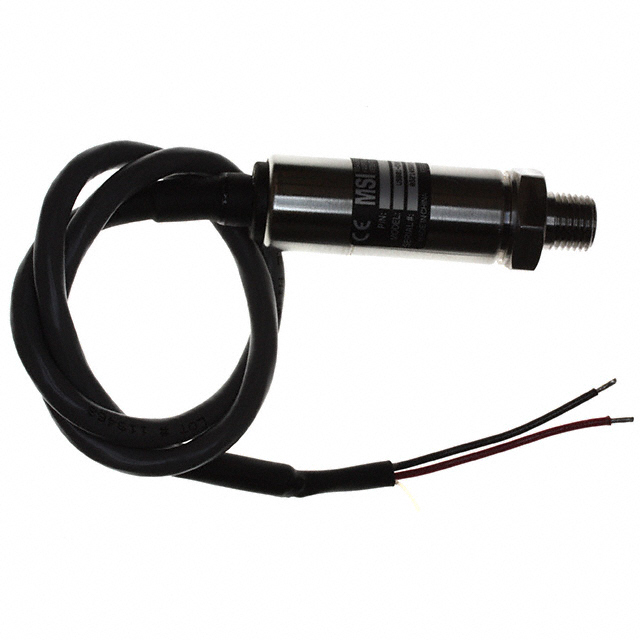

SENSOR 15PSIG 1/4NPT 4-20MA 2'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
US681-C00005-015PG
ObsoleteTE Connectivity Measurement Specialties
SENSOR 15PSIG 1/4NPT 4-20MA 2'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | US681-C00005-015PG | US681 Series |
|---|---|---|
| Accuracy | 0.1 % | 0.1 % |
| Applications | Industrial Automation | Industrial Automation |
| Features | Amplified Output | Amplified Output |
| Maximum Pressure [Max] | 310.26 kPa | 310.26 - 2068.43 kPa |
| Maximum Pressure [Max] | 45 PSI | 45 - 300 PSI |
| Operating Pressure | - | 689.48 kPa |
| Operating Pressure | - | 100 PSI |
| Operating Pressure [custom] | 15 PSI | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa | 103.42 kPa |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Output [Max] | 20 mA | 20 mA |
| Output [Min] | 4 mA | 4 mA |
| Output Type | Analog Current | Analog Current |
| Package / Case | Cylinder | Cylinder |
| Port Size [custom] | NPT | NPT |
| Port Size [custom] | Male | Male |
| Port Size [x] | 0.25 " | 0.25 " |
| Port Size [x] | 6.35 mm | 6.35 mm |
| Port Style | Threaded | Threaded |
| Pressure Type | Vented Gauge | Vented Gauge |
| Termination Style | Cable | Cable |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
US681 Series
SENSOR 15PSIG 1/4NPT 4-20MA 2'
| Part | Termination Style | Features | Port Style | Accuracy | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Port Size [custom] | Port Size [x] | Port Size [x] | Port Size [custom] | Output Type | Applications | Output [Max] | Output [Min] | Operating Pressure [custom] | Operating Pressure [custom] | Operating Pressure | Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Measurement Specialties US681-C00005-015PG | Cable | Amplified Output | Threaded | 0.1 % | -50 °C | 125 °C | Cylinder | 30 VDC | 10 VDC | Vented Gauge | 310.26 kPa | 45 PSI | NPT | 0.25 " | 6.35 mm | Male | Analog Current | Industrial Automation | 20 mA | 4 mA | 15 PSI | 103.42 kPa | ||
TE Connectivity Measurement Specialties US681-C00005-015PA | Cable | Amplified Output | Threaded | 0.1 % | -50 °C | 125 °C | Cylinder | 30 VDC | 10 VDC | 310.26 kPa | 45 PSI | NPT | 0.25 " | 6.35 mm | Male | Analog Current | Industrial Automation | 20 mA | 4 mA | 15 PSI | 103.42 kPa | |||
TE Connectivity Measurement Specialties US681-C00005-100PG | Cable | Amplified Output | Threaded | 0.1 % | -50 °C | 125 °C | Cylinder | 30 VDC | 10 VDC | Vented Gauge | 2068.43 kPa | 300 PSI | NPT | 0.25 " | 6.35 mm | Male | Analog Current | Industrial Automation | 20 mA | 4 mA | 689.48 kPa | 100 PSI |
