N10240-5212PC

Active

JE150333449 N10240-5212PC=40/MDR/RC/RA/RECP/HITEMP/M2.5/SWLK/30MIN

Search across all available documentation for this part.

Active

JE150333449 N10240-5212PC=40/MDR/RC/RA/RECP/HITEMP/M2.5/SWLK/30MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N10240-5212PC	N10240 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Shielded	Shielded, Board Lock
Flange Feature	Housing/Shell	Housing/Shell, Latchblocks, Housing/Shell (M2.5)
Flange Feature	2.6 M	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	40	40
Number of Rows	2	2
Termination	Solder	Solder

CONN RCPT 40POS R/A SOLDER

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Termination	Number of Positions	Flange Feature	Flange Feature	Mounting Type	Contact Finish	Connector Style	Features
3M N10240-52B3VC	0.76 Ám	30 Áin	Receptacle	2	Solder	40	Housing/Shell	2.6 M	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Board Lock, Shielded
3M N10240-5212PC	0.76 Ám	30 Áin	Receptacle	2	Solder	40	Housing/Shell	2.6 M	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Shielded
3M N10240-6212PC	0.76 Ám	30 Áin	Receptacle	2	Solder	40	Housing/Shell (M2.5), Latchblocks		Panel Mount, Through Hole	Gold	Outer Shroud Contacts	Shielded
3M N10240-52G3VC	0.76 Ám	30 Áin	Receptacle	2	Solder	40	Housing/Shell	2.6 M	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Board Lock, Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

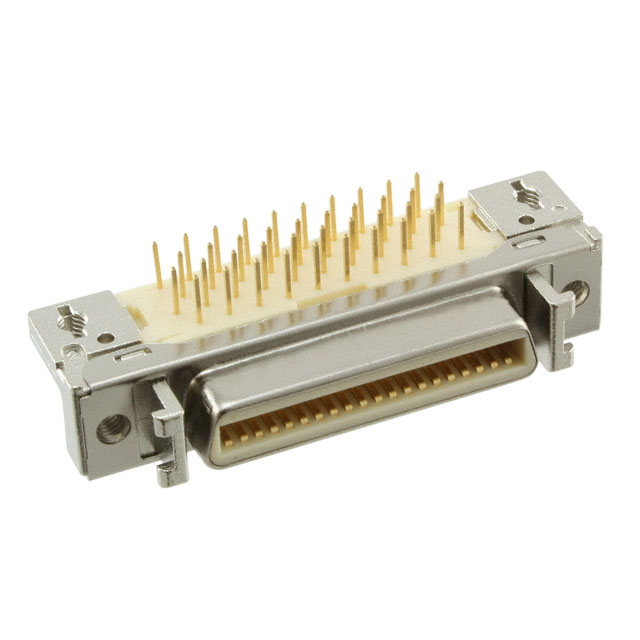

40 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
