12600-S-00

Active

JE150325064 12600-S-00=SDRLOCKFORTHUMBSCREWSHELL0MM

Search across all available documentation for this part.

Active

JE150325064 12600-S-00=SDRLOCKFORTHUMBSCREWSHELL0MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

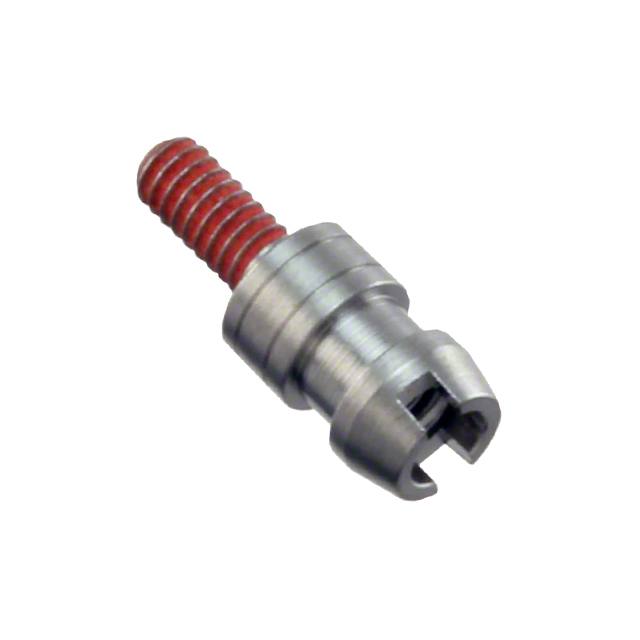

Jackscrew Socket, Slotted For D-Sub Connectors, SDR

Technical documentation and resources

Specification	12600-S-00	12600 Series

Accessory Type	Jackscrew Socket, Slotted	Jackscrew Socket, Slotted
Drive Type	-	Phillips
For Use With/Related Products	D-Sub Connectors, SDR	D-Sub Connectors, SDR
Length - Below Head	-	5.33 - 5.84 mm
Length - Below Head	-	0.21 - 0.23 in
Length - Overall	-	0.28 in
Length - Overall	-	7.11 mm
Length - Threaded Portion Below Head	-	0.18 in
Length - Threaded Portion Below Head	-	4.57 mm
Plating	-	Zinc
Screw Head Type	-	Pan Head
Thread Size	M2 Socket, M2 Screw	M2 Socket, M2 Screw, M2
Type	-	Machine Screw

Part	For Use With/Related Products	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Type	Length - Overall [x]	Length - Overall [x]	Drive Type	Plating	Screw Head Type
3M 12600-S-12	D-Sub Connectors, SDR	0.18 in	4.57 mm	Jackscrew Socket, Slotted	5.84 mm	0.23 in	M2 Screw, M2 Socket
3M 12600-S-00	D-Sub Connectors, SDR			Jackscrew Socket, Slotted			M2 Screw, M2 Socket
3M 12600-S-M2X55					5.59 mm	0.22 in	M2	Machine Screw	0.28 in	7.11 mm	Phillips	Zinc	Pan Head
3M 12600-S-08	D-Sub Connectors, SDR	0.18 in	4.57 mm	Jackscrew Socket, Slotted	5.33 mm	0.21 in	M2 Screw, M2 Socket
