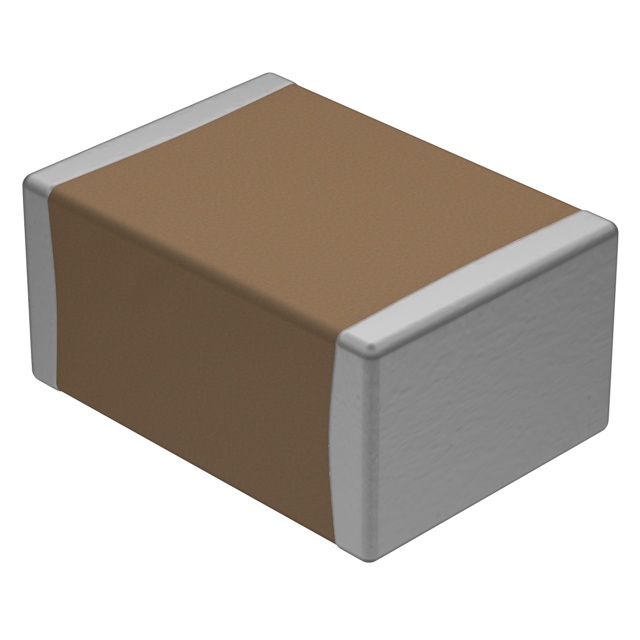

VJ1812Y182KBBAT4X

Active

Vishay Vitramon

CAP CER 1800PF 100V X7R 1812

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVJ Series Packaging Info VJ OMD Series

VJ1812Y182KBBAT4X

Active

Vishay Vitramon

CAP CER 1800PF 100V X7R 1812

Deep-Dive with AI

DocumentsVJ Series Packaging Info VJ OMD Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VJ1812Y182KBBAT4X	VJ1812 Series

Applications	SMPS Filtering, Boardflex Sensitive	SMPS Filtering, Boardflex Sensitive, General Purpose
Capacitance	1800 pF	0.001 - 100000 pF
Features	Soft Termination, Open Mode	Soft Termination, Open Mode, High Voltage, Epoxy Mountable
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC, Epoxy
Operating Temperature [Max]	125 °C	85 - 150 °C
Operating Temperature [Min]	-55 °C	-55 - -25 °C
Package / Case	1812 (4532 Metric)	1812 (4532 Metric)
Size / Dimension	-	0.177 in
Size / Dimension	-	0.126 "
Size / Dimension [x]	4.65 mm	4.65 mm
Size / Dimension [x]	0.183 "	0.183 - 4.5 "
Size / Dimension [y]	3.2 mm	3.2 mm
Size / Dimension [y]	0.126 in	0.126 - 3.2 in
Temperature Coefficient	X7R	NP0, C0G, X7R, Y5V (F)
Thickness (Max) [Max]	2.18 mm	2.18 mm
Thickness (Max) [Max]	0.086 in	0.086 in
Tolerance	10 %	1 - 20 %
Voltage - Rated	100 V	25 - 2000 V
Voltage - Rated	-	1 - 2 kV

VJ1812 Series

CAP CER 180PF 630V NP0 1812

...

Part	Package / Case	Tolerance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Features	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated
Vishay Vitramon VJ1812A181KBLAT4X	1812 (4532 Metric)	10 %	C0G, NP0	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	630 V	Open Mode, Soft Termination	180 pF
Vishay Vitramon VJ1812Y334KXCAR	1812 (4532 Metric)	10 %	X7R	-55 °C	150 °C	MLCC, Surface Mount			3.2 mm	4.5 mm	General Purpose	2.18 mm	0.086 in	200 V		0.33 µF	0.177 in	0.126 "
Vishay Vitramon VJ1812Y392JBLAT4X	1812 (4532 Metric)	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	630 V	Open Mode, Soft Termination	3900 pF
Vishay Vitramon VJ1812Y331JBFAT4X	1812 (4532 Metric)	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	2000 V	High Voltage, Open Mode, Soft Termination	330 pF			2 kV
Vishay Vitramon VJ1812A151JXHTW1BC	1812 (4532 Metric)	5 %	C0G, NP0	-55 °C	125 °C	MLCC, Surface Mount			3.2 mm	4.5 mm	General Purpose					150 pF	0.177 in	0.126 "
Vishay Vitramon VJ1812Y561JBEAT4X	1812 (4532 Metric)	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	500 V	Open Mode, Soft Termination	560 pF
Vishay Vitramon VJ1812A560JBCAT4X	1812 (4532 Metric)	5 %	C0G, NP0	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	200 V	Open Mode, Soft Termination	56 pF
Vishay Vitramon VJ1812Y683KBAAT4X	1812 (4532 Metric)	10 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	50 VDC	Open Mode, Soft Termination	0.068 µF
Vishay Vitramon VJ1812A560JBBAT4X	1812 (4532 Metric)	5 %	C0G, NP0	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	100 V	Open Mode, Soft Termination	56 pF
Vishay Vitramon VJ1812Y122JBRAT4X	1812 (4532 Metric)	5 %	X7R	-55 °C	125 °C	MLCC, Surface Mount	4.65 mm	3.2 mm	0.126 in	0.183 "	Boardflex Sensitive, SMPS Filtering	2.18 mm	0.086 in	1500 V	High Voltage, Open Mode, Soft Termination	1200 pF			1.5 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.71

Description

General part information

VJ1812 Series

1800 pF ±10% 100V Ceramic Capacitor X7R 1812 (4532 Metric)

Documents

Technical documentation and resources

VJ Series Packaging Info

Datasheet

VJ OMD Series

Datasheet
