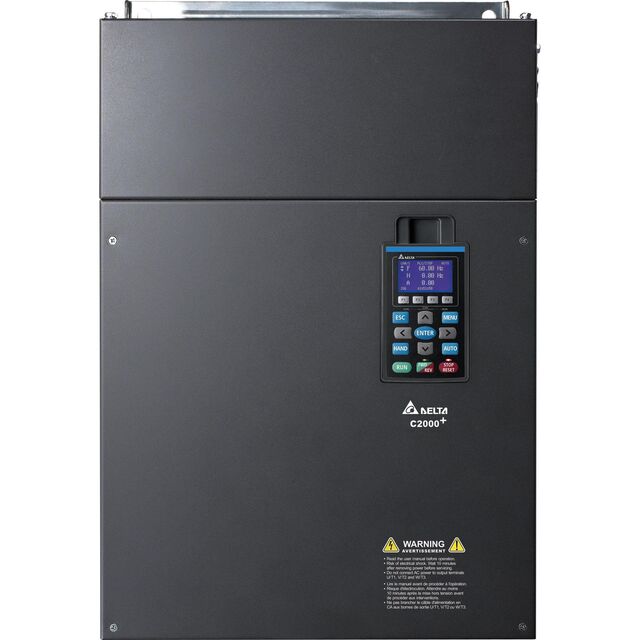

VFD300CP23A-21
ActiveDelta Electronics/Industrial Automation
VFD-CP2000, 40HP 230V, 3PHASE IN
Deep-Dive with AI
Search across all available documentation for this part.
VFD300CP23A-21
ActiveDelta Electronics/Industrial Automation
VFD-CP2000, 40HP 230V, 3PHASE IN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VFD300CP23A-21 | VFD300 Series |
|---|---|---|
| Current - Output | 105 A | 36 - 120 A |
| Interface | CAN | CAN, RS-485 |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] [custom] | 50 °C | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Voltage - Supply | 230 VAC | 230 - 690 VAC |
| Wattage - Load | 30000 W | 30000 W |
VFD300 Series
VFD-C2000, 40HP 230V, FOC & TRQ
| Part | Current - Output | Mounting Type | Voltage - Supply | Interface | Wattage - Load | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] |
|---|---|---|---|---|---|---|---|
Delta Electronics/Industrial Automation VFD300C23A | 120 A | Chassis Mount | 230 VAC | CAN | 30000 W | -10 °C | 50 °C |
Delta Electronics/Industrial Automation VFD300CP23A-21 | 105 A | Chassis Mount | 230 VAC | CAN | 30000 W | -10 °C | 50 °C |
Delta Electronics/Industrial Automation VFD300CP4EB-21 | 60 A | Chassis Mount | 460 VAC | CAN | 30000 W | -10 °C | 50 °C |
Delta Electronics/Industrial Automation VFD300C63A-21 | 36 A | Chassis Mount | 690 VAC | CAN | 30000 W | -10 °C | 50 °C |
Delta Electronics/Industrial Automation VFD300B23A | 120 A | Chassis Mount | 230 VAC | RS-485 | 30000 W | -10 °C | 50 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2116.78 | |
Description
General part information
VFD300 Series
VFD-CP2000, 40HP 230V, 3PHASE IN
Documents
Technical documentation and resources
No documents available
