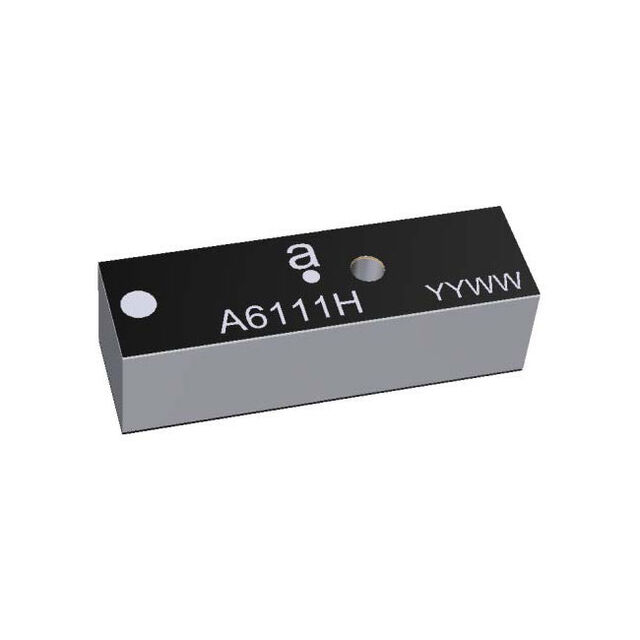

A6111H

Active

Antenova

A6111H COMATA 2.4 GHZ SMD HALOGE

Search across all available documentation for this part.

Active

Antenova

A6111H COMATA 2.4 GHZ SMD HALOGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6111H	A6111 Series

Antenna Type	PCB Trace	PCB Trace
For Use With/Related Products	-	A6111H
Frequency	-	2.5 GHz
Frequency	-	2.4 GHz
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Height (Max)	3.3 mm	3.3 mm
Height (Max) [Max] [z]	0.13 in	0.13 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	2.3	2.3

A6111H COMATA 2.4 GHZ SMD HALOGE

Part	Antenna Type	Height (Max) [Max] [z]	Height (Max)	Mounting Type	Number of Bands	VSWR	Frequency Range [Max]	Frequency Range [Min]	Termination	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Supplied Contents	Type
Antenova A6111H	PCB Trace	0.13 in	3.3 mm	Surface Mount	1	2.3	2.5 GHz	2.4 GHz	Solder
Antenova A6111H-EVB-1										2.5 GHz	2.4 GHz	A6111H	Board(s)	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA PCB Trace Solder Surface Mount
