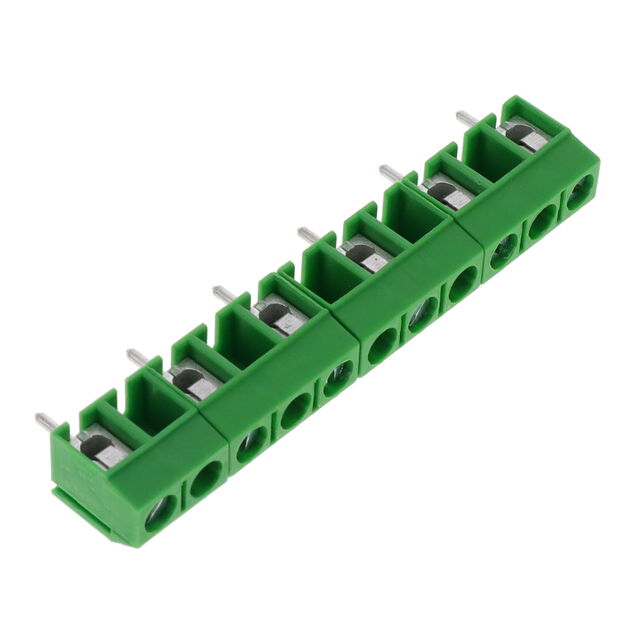

10202.1
ActiveConta-Clip, Inc.
PCB TERMINAL
10202.1
ActiveConta-Clip, Inc.
PCB TERMINAL
Description
General part information
10202.1
6 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 10202.1 |
|---|---|
| Clamp Material - Plating | Brass |
| Color | Green |
| Contact Material - Plating | Stainless, Steel |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.4 in |
| Positions Per Level | 6 |
| Screw Material | Steel |
| Screw Thread | M2.6 |
| Torque - Screw | 0.4 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
