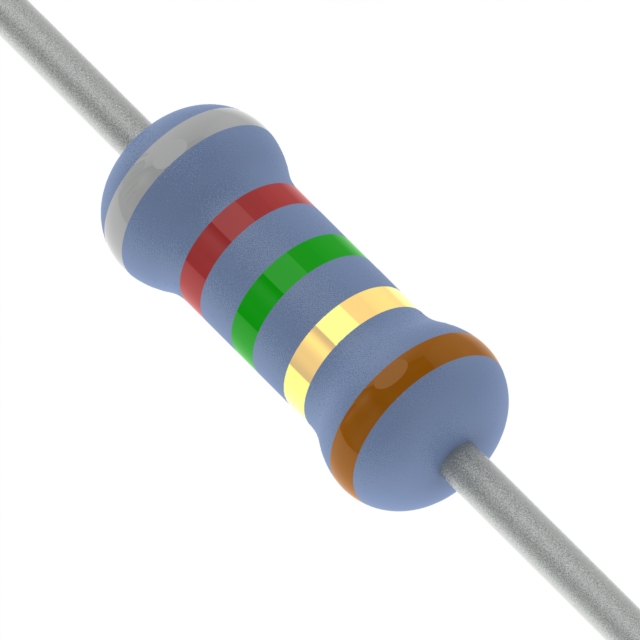

RSMF2FT82R5
ActiveStackpole Electronics Inc
RES 82.5 OHM 1% 2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
RSMF2FT82R5
ActiveStackpole Electronics Inc
RES 82.5 OHM 1% 2W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSMF2FT82R5 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 235 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 82.5 Ohms |
| Size / Dimension [diameter] | 4.5 mm |
| Size / Dimension [diameter] | 0.177 " |
| Size / Dimension [z] | 0.433 in |
| Size / Dimension [z] | 11 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.06 | |
Description
General part information
RSMF2FT82R5
82.5 Ohms ±1% 2W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Documents
Technical documentation and resources
