325111-16-0
ActiveCurtis Industries

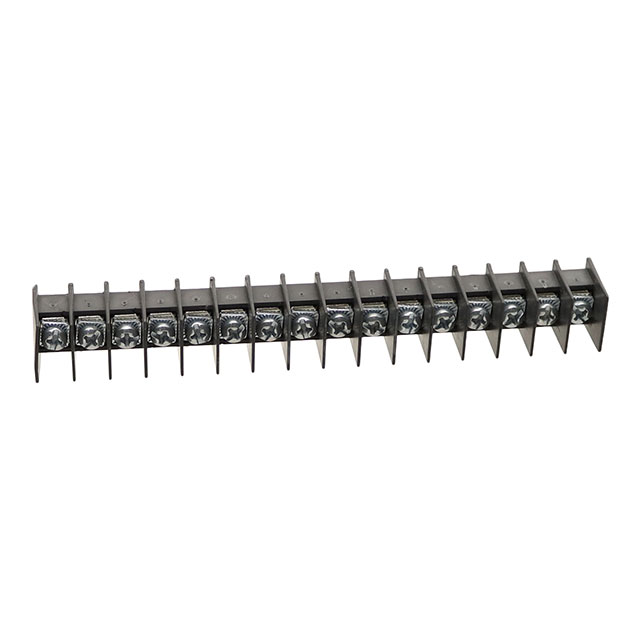

CONN BARRIER STRP 16CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325111-16-0
ActiveCurtis Industries
CONN BARRIER STRP 16CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325111-16-0 | 325111 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 16 | 2 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 16 | 2 - 26 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.31 | |
| 10 | $ 4.98 | |||
| 30 | $ 4.74 | |||
| 50 | $ 4.30 | |||
| 100 | $ 4.28 | |||
325111 Series
CONN BARRIER STRP 17CIRC 0.325"
| Part | Material - Insulation | Top Termination | Number of Wire Entries | Barrier Type | Bottom Termination | Number of Circuits | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Pitch [x] | Pitch [x] | Operating Temperature | Terminal Block Type | Mounting Type | Number of Rows | Material Flammability Rating | Voltage Rating | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325111-17-0 | Polypropylene (PP) | Screws | 17 | 2 Wall (Dual) | PC Pin | 17 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-11-0 | Polypropylene (PP) | Screws | 11 | 2 Wall (Dual) | PC Pin | 11 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-21-0 | Polypropylene (PP) | Screws | 21 | 2 Wall (Dual) | PC Pin | 21 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-25-0 | Polypropylene (PP) | Screws | 25 | 2 Wall (Dual) | PC Pin | 25 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-02-0 | Polypropylene (PP) | Screws | 2 | 2 Wall (Dual) | PC Pin | 2 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-12-0 | Polypropylene (PP) | Screws | 12 | 2 Wall (Dual) | PC Pin | 12 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-16-0 | Polypropylene (PP) | Screws | 16 | 2 Wall (Dual) | PC Pin | 16 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-09-0 | Polypropylene (PP) | Screws | 9 | 2 Wall (Dual) | PC Pin | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | ||
Curtis Industries 325111-26-0 | Polypropylene (PP) | Screws | 26 | 2 Wall (Dual) | PC Pin | 26 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC | |
Curtis Industries 325111-19-0 | Polypropylene (PP) | Screws | 19 | 2 Wall (Dual) | PC Pin | 19 | 14 AWG | 22 AWG | 15 A | 8.26 mm | 0.325 in | 105 C | Barrier Block | Through Hole | 1 | UL94 V-0 | 300 VDC |
Description
General part information
325111 Series
16 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
