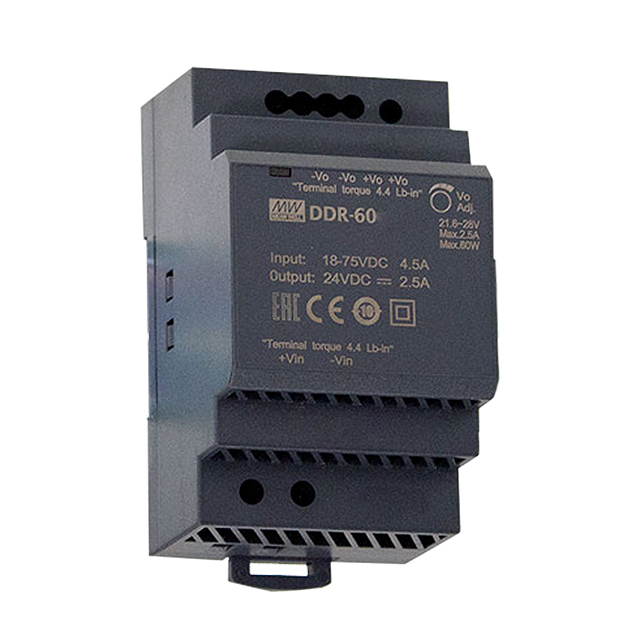

DDR-60L-15

Active

MEAN WELL USA Inc.

DC/DC DIN RAIL SUPPLY 15V 60W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC/DC DIN RAIL SUPPLY 15V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Features	Current - Output (Max) [Max]	Voltage - Isolation	Applications	Input Type	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	DC Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)
MEAN WELL USA Inc. DDR-60L-15	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	92 %	Adjustable Output	4 A	4000 V	ITE (Commercial)	DC	18 V	15 V	85 °C	-40 °C	CE EAC	75 V	1
MEAN WELL USA Inc. DDR-60G-12	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	91 %	Adjustable Output	5 A	4000 V	ITE (Commercial)	DC	9 V	12 V	85 °C	-40 °C	CE EAC	36 V	1
MEAN WELL USA Inc. DDR-60G-5	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	87.5 %	Adjustable Output	10.8 A	4000 V	ITE (Commercial)	DC	9 V	5 V	85 °C	-40 °C	CE EAC	36 V	1	54 W
MEAN WELL USA Inc. DDR-60G-24	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	91 %	Adjustable Output	2.5 A	4000 V	ITE (Commercial)	DC	9 V	24 V	85 °C	-40 °C	CE EAC	36 V	1
MEAN WELL USA Inc. DDR-60L-24	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	92 %	Adjustable Output	2.5 A	4000 V	ITE (Commercial)	DC	18 V	24 V	85 °C	-40 °C	CE EAC	75 V	1
MEAN WELL USA Inc. DDR-60G-15	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm	91 %	Adjustable Output	4 A	4000 V	ITE (Commercial)	DC	9 V	15 V	85 °C	-40 °C	CE EAC	36 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC/DC DIN RAIL SUPPLY 15V 60W
