Specification	LCC6-14JW-L

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.22 in
Diameter - Barrel OD	0.31 in
Diameter - Ring ID	0.27 in
Insulation	Non-Insulated
Length - Overall	2.36 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Tab Thickness	0.08 in
Terminal Style	Two Stud Holes
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	0.48 in
Wire Gauge	6 AWG

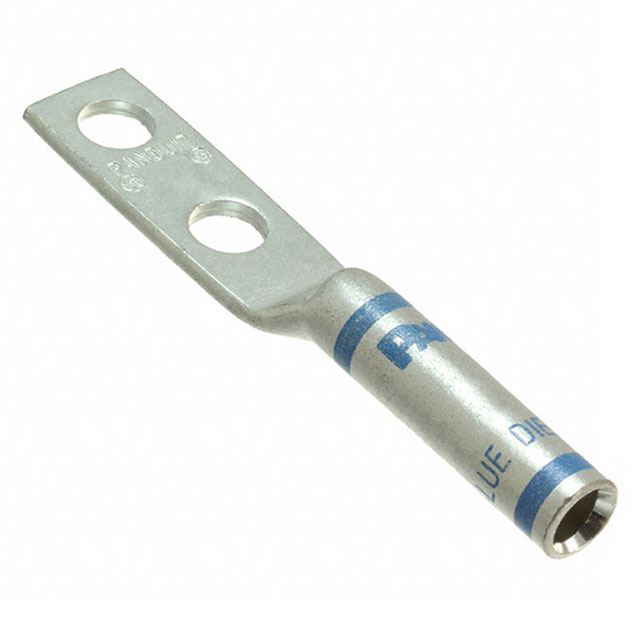

LCC6 Series

Part	Diameter - Barrel OD	Diameter - Ring ID	Diameter - Barrel ID	Contact Material	Contact Finish	Tab Thickness	Insulation	Stud/Tab Size	Stud/Tab Size	Terminal Type	Length - Overall	Termination	Mounting Type	Width - Outer Edges	Wire Gauge (MCM)	Terminal Style	Color	Wire Gauge	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
Panduit Corp LCC400-38D-6	0.95 in	0.41 in	0.76 in	Copper	Electro-Tin	0.18 in	Non-Insulated	0.375 in	3 Stud 8 Stud	Rectangular Tongue	4.92 in	Barrel Crimb	Free Hanging (In-Line)	1.39 in	400 MCM	Two Stud Holes	Blue
Panduit Corp LCC3/0-38DW-X	0.64 in	0.41 in	0.51 in	Copper	Electro-Tin	0.13 in	Non-Insulated	0.375 in	3 Stud 8 Stud	Grounding Lug	3.701 in	Barrel Crimb	Free Hanging (In-Line)	0.96 in		Two Stud Holes	Orange	3/0 AWG
Panduit Corp LCC600-12W-6						0.26 in	Non-Insulated	0.5 Stud		Rectangular Tongue	6.36 in	Barrel Crimb	Free Hanging (In-Line)	1.7 in	600 MCM	Two Stud Holes	Green
Panduit Corp LCC6-10AH-L						0.08 in	Non-Insulated	10 Stud		Rectangular Tongue		Barrel Crimb	45° Angle Free Hanging (In-Line)	0.46 in		Two Stud Holes	Blue	6 AWG
Panduit Corp LCC10-14JAW-L						0.05 in	Non-Insulated	0.25 Stud		Grounding Lug	1.93 in	Barrel Crimb	Free Hanging (In-Line)	0.42 in		Round Slotted			12 AWG	10 AWG
Panduit Corp LCC500-14BW-6	1.06 in	0.27 in	0.84 in	Copper	Electro-Tin	0.22 in	Non-Insulated	0.25 Stud		Rectangular Tongue	4.46 in	Barrel Crimb	Free Hanging (In-Line)	1.54 in	500 MCM	Two Stud Holes	Brown
Panduit Corp LCC4/0-12-B-X						0.14 in	Non-Insulated	0.5 Stud		Grounding Lug	5.13 in	Barrel Crimb	Free Hanging (In-Line)	1.06 in		Two Stud Holes	Purple	4/0 AWG
Panduit Corp LCC800-12-6						0.29 in	Non-Insulated	0.5 Stud		Rectangular Tongue	7.13 in	Barrel Crimb	Free Hanging (In-Line)	1.95 in	800 MCM	Two Stud Holes	Orange
Panduit Corp LCC10-14BW-L	0.22 in	0.27 in	0.13 in	Copper	Electro-Tin	0.05 in	Non-Insulated	0.25 Stud		Rectangular Tongue	2.06 in	Barrel Crimb	Free Hanging (In-Line)	0.42 in		Two Stud Holes		10 AWG
Panduit Corp LCC250-12-X	0.77 in	0.53 in	0.63 in	Copper	Electro-Tin	0.14 in	Non-Insulated	0.5 Stud		Rectangular Tongue	5.23 in	Barrel Crimb	Free Hanging (In-Line)	1.17 in	250 MCM	Two Stud Holes	Yellow
