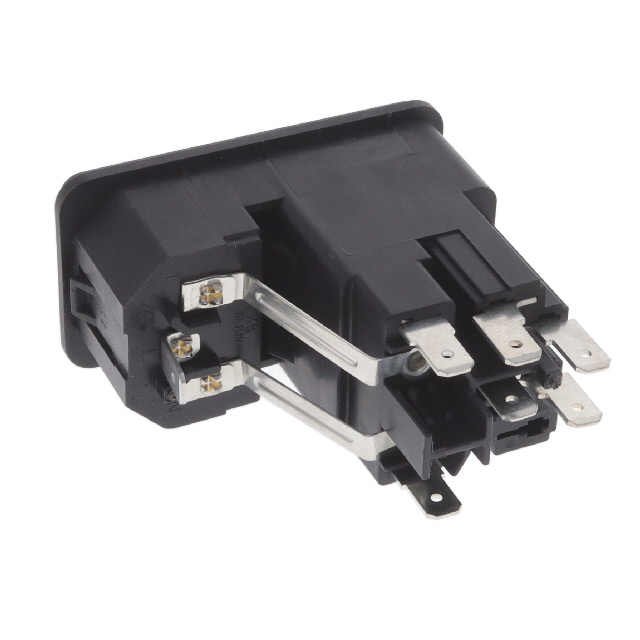

KE10.6200.109
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KE10.6200.109
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KE10.6200.109 | KE10.6200 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, ENEC, CSA | cURus, ENEC, UL, ENEC, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Voltage Selector | Voltage Selector |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 52.5 mm | 52.5 mm |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KE10.6200 Series
PWR ENT MOD RCPT IEC320-C14
| Part | Ingress Protection | Accomodates a Fuse | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Appliance Inlet | Features | Connector Style | Connector Type | Voltage Rating - Appliance Inlet | Fuse Holder, Drawer | Filter Type | Approval Agency | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KE10.6200.151 | IP40 | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | IEC 320-C14 | Receptacle, Male Blades - Module | 250 VAC | Drawer Sold Separate | Unfiltered - Commercial | cURus, ENEC | UL94 V-0 | |
SCHURTER Inc. KE10.6200.107 | IP40 | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | IEC 320-C14 | Receptacle, Male Blades - Module | 250 VAC | Drawer Sold Separate | Unfiltered - Commercial | CSA, ENEC, UL | UL94 V-0 | |
SCHURTER Inc. KE10.6200.109 | IP40 | 27.5 mm | 52.5 mm | 10 A | Voltage Selector | IEC 320-C14 | Receptacle, Male Blades - Module | 250 VAC | Drawer Sold Separate | Unfiltered - Commercial | CSA, ENEC, UL | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.27 | |
| 50 | $ 15.76 | |||
| 100 | $ 12.46 | |||
| 500 | $ 10.11 | |||
| 1000 | $ 9.77 | |||
Description
General part information
KE10.6200 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
