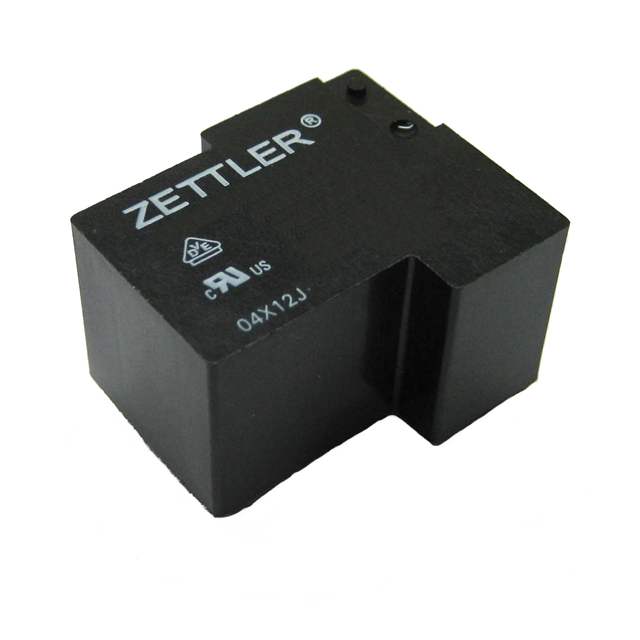

AZ2150-1A-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2150-1A-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.55
		10	$ 2.39
		25	$ 2.12
		40	$ 2.02
		80	$ 1.91
		240	$ 1.70
		440	$ 1.59
		960	$ 1.48
		4920	$ 1.43

Description

General part information

AZ2150-1A Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2150-1A-24DEF	AZ2150-1A Series

Approval Agency	cURus, VDE	cURus, VDE
Coil Current	36.4 mA	12.7 - 185.2 mA
Coil Insulation	Class F	Class B, Class F
Coil Resistance	660 Ohms	5.5 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	5 - 70 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	1200 W, 12000 VA	1200 - 12000 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	3.75 - 52.5 VDC
Must Release Voltage	2.4 VDC	0.5 - 7 VDC
Operate Time	12 ms	12 ms
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	5 ms	5 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage [Max]	300 VAC, 30 VDC	30 - 300 VAC
Termination Style	PC Pin	PC Pin

AZ2150-1A Series

RELAY GEN PURPOSE SPST 40A 24V

Part	Operate Time	Must Operate Voltage	Coil Insulation	Contact Rating (Current)	Contact Form	Coil Voltage	Must Release Voltage	Mounting Type	Load - Max Switching	Relay Type	Approval Agency	Release Time	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Type	Termination Style	Coil Current	Switching Voltage [Max]	Seal Rating
American Zettler AZ2150-1A-24D	12 ms	18 VDC	Class B	40 A	SPST-NO (1 Form A)	24 VDC	2.4 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	660 Ohms	85 °C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	36.4 mA	30 VDC, 300 VAC
American Zettler AZ2150-1A-15DE	12 ms	11.25 VDC	Class B	40 A	SPST-NO (1 Form A)	15 VDC	1.5 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	256 Ohms	85 °C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	58.6 mA	30 VDC, 300 VAC	Sealed - Fully
American Zettler AZ2150-1A-12D	12 ms	9 VDC	Class B	40 A	SPST-NO (1 Form A)	12 VDC	1.2 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	155 Ohms	85 °C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	77.4 mA	30 VDC, 300 VAC
American Zettler AZ2150-1AE-48DE	12 ms	36 VDC	Class B	40 A	SPST-NO (1 Form A)	48 VDC	4.8 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	2560 Ohms	85 °C	-55 °C	Silver Tin Oxide (AgSnO)	Non Latching	PC Pin	18.8 mA	30 VDC, 300 VAC	Sealed - Fully
American Zettler AZ2150-1A-12DEF	12 ms	9 VDC	Class F	40 A	SPST-NO (1 Form A)	12 VDC	1.2 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	155 Ohms	85 °C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	77.4 mA	30 VDC, 300 VAC	Sealed - Fully
American Zettler AZ2150-1AE-48DEF	12 ms	36 VDC	Class F	40 A	SPST-NO (1 Form A)	48 VDC	4.8 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	2560 Ohms	105 ░C	-55 °C	Silver Tin Oxide (AgSnO)	Non Latching	PC Pin	18.8 mA	30 VDC, 300 VAC	Sealed - Fully
American Zettler AZ2150-1A-24DF	12 ms	18 VDC	Class F	40 A	SPST-NO (1 Form A)	24 VDC	2.4 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	660 Ohms	105 ░C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	36.4 mA	30 VDC, 300 VAC
American Zettler AZ2150-1A-22DF	12 ms		Class F	40 A	SPST-NO (1 Form A)	22 VDC	2.2 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms		105 ░C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin		30 VDC, 300 VAC
American Zettler AZ2150-1A-18DE	12 ms	13.5 VDC	Class B	40 A	SPST-NO (1 Form A)	18 VDC	1.8 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	380 Ohms	85 °C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	47.4 mA	30 VDC, 300 VAC	Sealed - Fully
American Zettler AZ2150-1A-18DEF	12 ms	13.5 VDC	Class F	40 A	SPST-NO (1 Form A)	18 VDC	1.8 VDC	Through Hole	1200 W, 12000 VA	General Purpose	cURus, VDE	5 ms	380 Ohms	105 ░C	-55 °C	Silver Cadmium Oxide (AgCdO)	Non Latching	PC Pin	47.4 mA	30 VDC, 300 VAC	Sealed - Fully
