Description
General part information

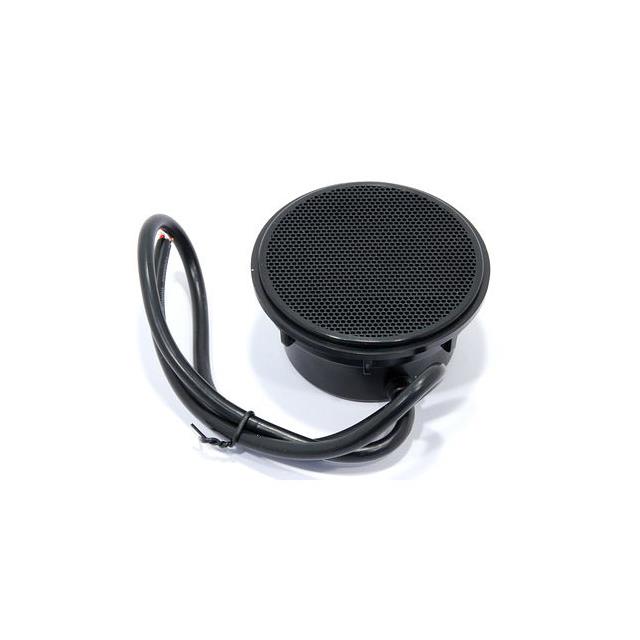

PL 7 RV - 4 OHM
4 Ohms Speaker 10 W 400 Hz ~ 5 kHz User Defined Round
Technical Specifications
Parameters and characteristics for this part
| Specification | PL 7 RV - 4 OHM |
|---|---|
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range (Max) | 5 kHz |
| Frequency Range (Min) | 400 Hz |
| Height - Seated (Max) | 1.457 in |
| Impedance | 4 Ohms |
| Port Location | User Defined |
| Power - Max | 20 W |
| Power - Rated | 10 W |
| Shape | Round |
| Size / Dimension Diameter | 2.992 in |
| Termination | Wire Leads |
