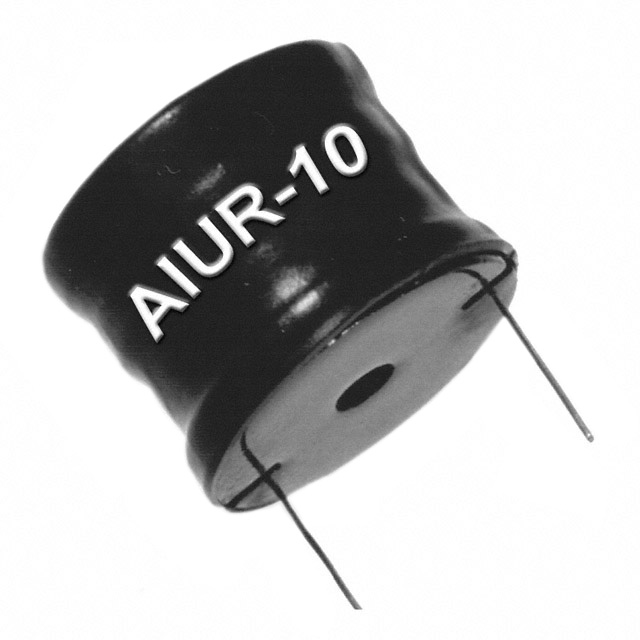

AIUR-10-392K
ActiveAbracon LLC
FIXED IND 3.9MH 140MA 13 OHM TH
AIUR-10-392K
ActiveAbracon LLC
FIXED IND 3.9MH 140MA 13 OHM TH
Description
General part information
AIUR-10-392K
3.9 mH Unshielded Drum Core, Wirewound Inductor 140 mA 13Ohm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-10-392K |
|---|---|
| Current Rating | 140 mA |
| DC Resistance (DCR) (Max) | 13 Ohm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 3.9 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
