Description
General part information
177040

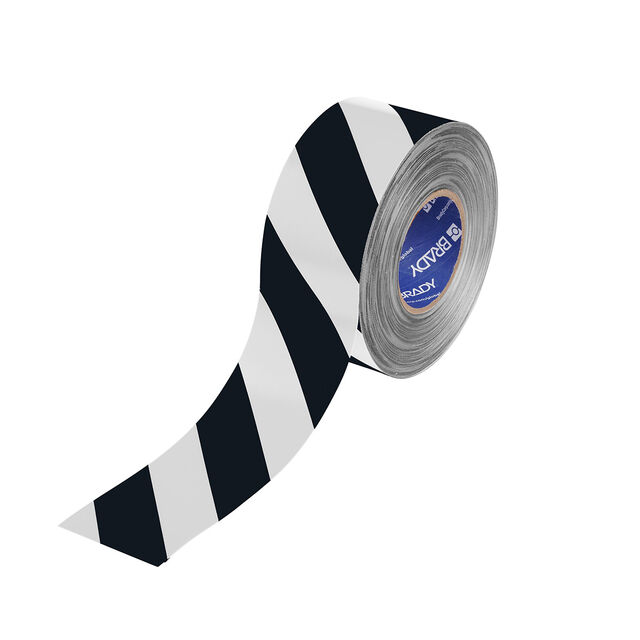

Marking Tape Rubber Adhesive Black, White 3.00" (76.20mm) X 100' (30.5m) 33.3 yds
Technical Specifications
Parameters and characteristics for this part
| Specification | 177040 |
|---|---|
| Adhesive | Rubber |
| Backing | Polyester |
| Carrier | Polyester |
| Color | Black, White |
| Length (ft) | 100 ft |
| Length (yd) | 33.3 yd |
| Shelf Life | 24 Months |
| Shelf Life Start | Date Received |
| Storage/Refrigeration Temperature (Maximum) | 80 °F |
| Storage/Refrigeration Temperature (Minimum) | 60 °F |
| Tape Type | Marking |
| Temperature Range (Max) | 140 °F |
| Temperature Range (Min) | 50 °F |
| Thickness | 0.022 in |
| Usage | Aisle Marking |
| Width | 3 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
