796329-4

Active

TE Connectivity AMP Connectors

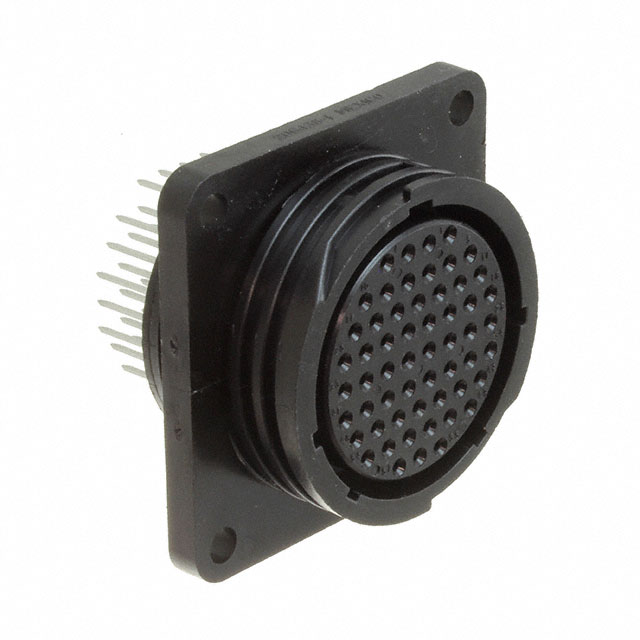

CONN RCPT FMALE 57POS GOLD SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT FMALE 57POS GOLD SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796329-4	796329 Series

Applications	General Purpose	General Purpose
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	2.54 çm	0.76 - 2.54 Ám
Contact Finish Thickness - Mating	100 çin	30 - 100 Áin
Current Rating (Amps)	7.5 A	7.5 A
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	57	57
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert [Max]	57	57
Shell Size - Insert [Min]	23	23
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

CONN RCPT FMALE 57P GOLD SOLDER

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Mounting Feature	Voltage Rating	Orientation	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 796329-3	General Purpose	-40 °C	105 ░C	57	Solder	Flange	250 VDC	Keyed	Black	23	57	Receptacle, Female Sockets	Gold	Plastic	7.5 A	Panel Mount, Through Hole	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 1-796329-1	General Purpose	-40 °C	105 ░C	57	Solder	Flange	250 VDC	Keyed	Black	23	57	Receptacle, Female Sockets	Gold	Plastic	7.5 A	Panel Mount, Through Hole	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 796329-4	General Purpose	-40 °C	105 ░C	57	Solder	Flange	250 VDC	Keyed	Black	23	57	Receptacle, Female Sockets	Gold	Plastic	7.5 A	Panel Mount, Through Hole	UL94 V-0	100 çin	2.54 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

57 Position Circular Connector Receptacle, Female Sockets Solder
