MEA1D1209DC

Active

Murata Power Solutions Inc.

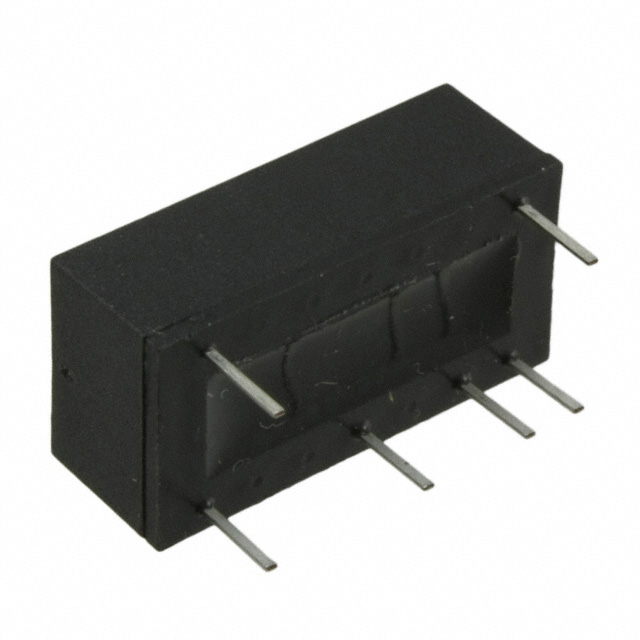

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEA1D1209DC	MEA1D12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	33 mA
Efficiency	86.5 %	86.5 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	14-DIP Module, 6 Leads, 7-SIP Module, 5 Leads
Size / Dimension [x]	0.78 "	0.77 - 0.78 "
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [y]	10 mm	6.2 - 10 mm
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	9 V	9 - 15 V
Voltage - Output 2	-9 V	-15 - -9 V

DC DC CONVERTER +/-9V 1W

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Efficiency	Voltage - Output 1	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Applications	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max)
Murata Power Solutions Inc. MEA1D1209DC	13.2 V	10.8 V	Isolated Module	86.5 %	9 V	Through Hole	2	0.78 "	0.39 "	10 mm	19.7 mm	0.28 "	7 mm	14-DIP Module, 6 Leads	ITE (Commercial)	-9 V	85 °C	-40 °C	1000 V
Murata Power Solutions Inc. MEA1D1215SC	13.2 V	10.8 V	Isolated Module	88 %	15 V	Through Hole	2	0.77 in	0.24 "	6.2 mm	19.7 mm	0.4 "	10.2 mm	7-SIP Module, 5 Leads	ITE (Commercial)	-15 V	85 °C	-40 °C	1000 V	33 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 10.8V - 13.2V Input
