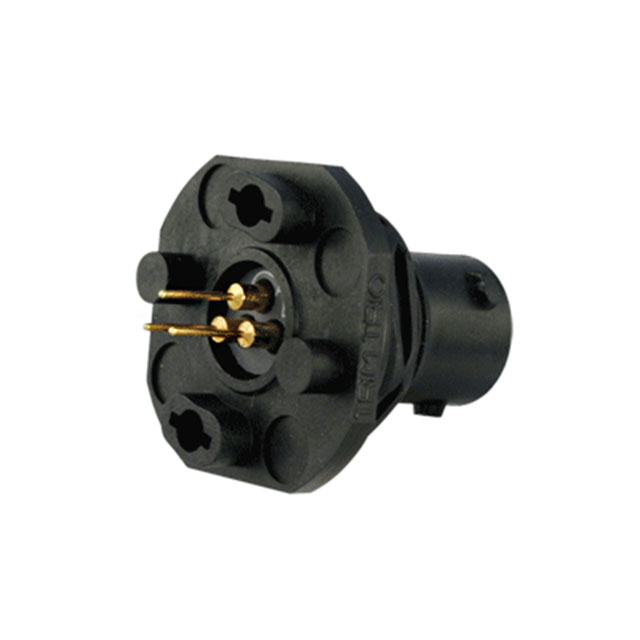

UTS78D33P
ActiveSouriau-Sunbank by Eaton
CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
UTS78D33P
ActiveSouriau-Sunbank by Eaton
CONN RCPT MALE 3POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS78D33P |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 8-33 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 16.24 | |
Description
General part information
UTS78D33P
3 Position Circular Connector Receptacle, Male Pins Solder
Documents
Technical documentation and resources
No documents available
