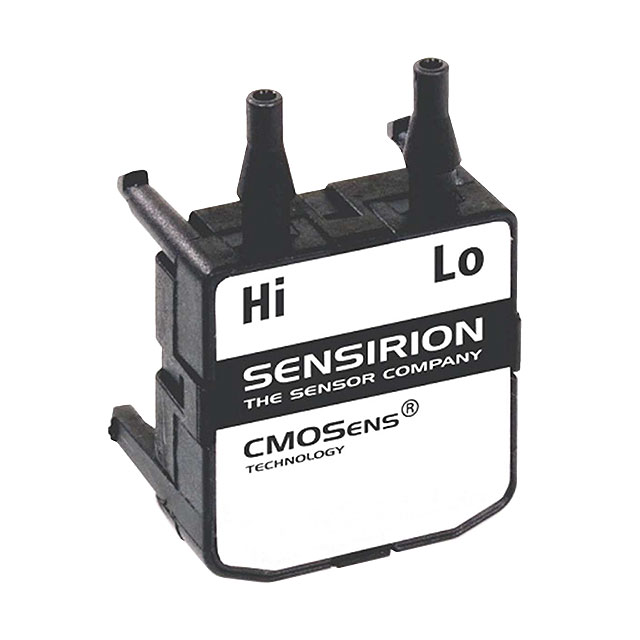

SDP2108-R
ObsoleteSensirion AG
SENSOR 0.51PSID 0.2" 4V MODULE
SDP2108-R
ObsoleteSensirion AG
SENSOR 0.51PSID 0.2" 4V MODULE
Description
General part information
SDP2108-R
Pressure Sensor 0.51PSI (3.49kPa) Differential Male - 0.2" (5.2mm) Tube, Dual 0.25 V ~ 4 V Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SDP2108-R |
|---|---|
| Accuracy | 0.4 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 14.5 PSI |
| Operating Pressure | 0.51 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4 V |
| Output Voltage (Min) | 0.25 V |
| Package / Case | Module |
| Package Name | Module |
| Port Diameter | 0.2 " |
| Port Feature | Dual, Tube |
| Port Gender | Male |
| Port Style | Barbed |
| Pressure Type | Differential |
| Voltage - Supply | 5 VDC |
