PE3VNA2604-48
ActivePasternack

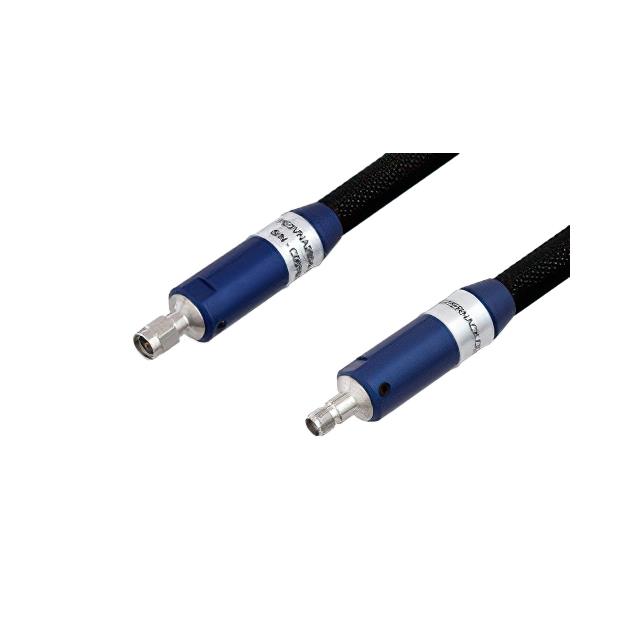

VNA RUGGEDIZED TEST CABLE 3.5MM
PE3VNA2604-48
ActivePasternack
VNA RUGGEDIZED TEST CABLE 3.5MM
Description
General part information
PE3VNA2604-48
Cable Assembly Coaxial 3.5mm to 3.5mm VNA 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3VNA2604-48 |
|---|---|
| 1st Connector | Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Female |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 26.5 GHz |
| Length | 48 in |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | 3.5mm to 3.5mm |
