SF24251
ActiveFairview Microwave

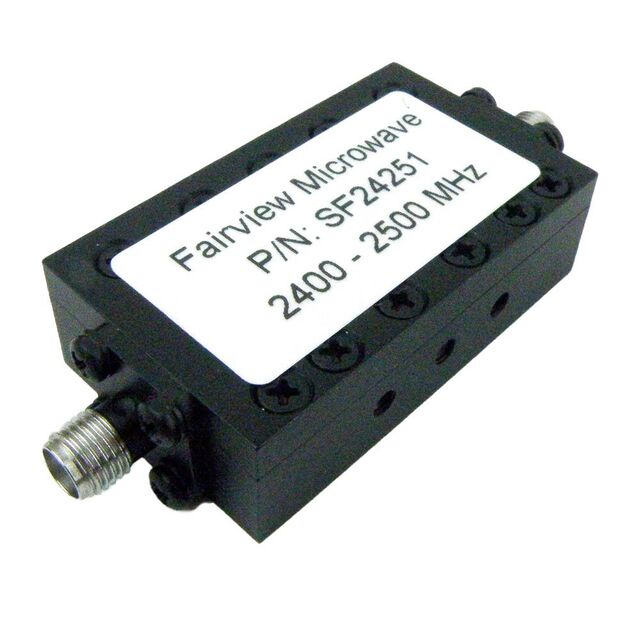

BANDPASS FILTER 2.4-2.5GHZ SMA
SF24251
ActiveFairview Microwave
BANDPASS FILTER 2.4-2.5GHZ SMA
Description
General part information
SF24251
2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | SF24251 |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.45 GHz |
| Height (Max) | 0.63 in |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.799 in |
| Size / Dimension Width | 1.059 in |
