1408312-1

Active

TE Connectivity AMP Connectors

CONN MMCX PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MMCX PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN MMCX PLUG STR 50 OHM CRIMP

Part	Body Finish	Contact Termination	Fastening Type	Impedance	Includes	Shield Termination	Connector Style	Mounting Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Housing Color	Connector Type	Cable Group	Voltage Rating	Frequency - Max [Max]	Number of Ports
TE Connectivity AMP Connectors 1408312-1	Gold	Crimp	Snap-On	50 Ohms	1 Connector, 1 Contact, 1 Ferrule	Crimp	MMCX	Free Hanging (In-Line)	500	155 °C	-55 °C	Gold	Gold	Male Pin, Plug	RG-316	170 V	6000 MHz	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

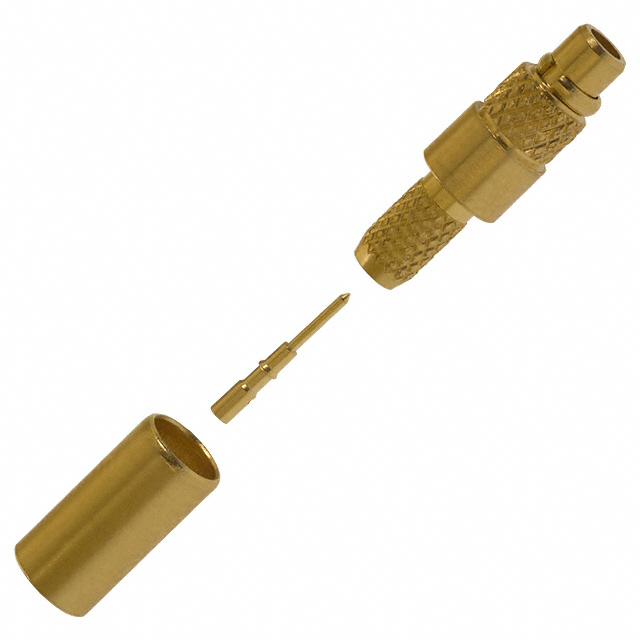

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
