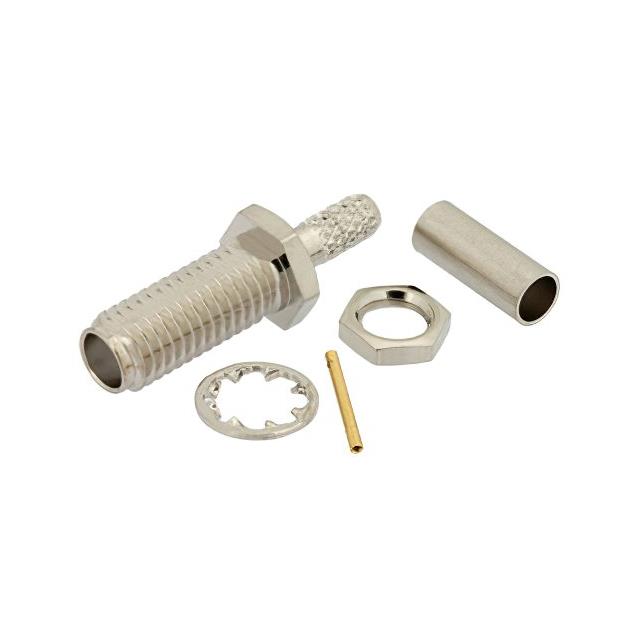

PE44388
ActivePasternack
SSMA FEMALE BULKHEAD CONNECTOR C
PE44388
ActivePasternack
SSMA FEMALE BULKHEAD CONNECTOR C
Description
General part information
PE44388
SSMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44388 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174, 316, 188 |
| Connector Style | SSMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
