M3RRK-5036J
Active3M
IDC CABLE - MPR50K/MC50G/MPR50K
Deep-Dive with AI
Search across all available documentation for this part.
M3RRK-5036J
Active3M
IDC CABLE - MPR50K/MC50G/MPR50K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3RRK-5036J | M3RRK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | - | 152.4 - 508 mm |
| Length | - | 1.67 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 50 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3RRK Series
IDC CABLE - MPR26K/MC26F/MPR26K
| Part | Contact Finish Thickness | Contact Finish Thickness | Color | Connector Type | Features | Length | Length | Number of Rows | Number of Positions | Cable Termination | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Shielding | Contact Finish | Length [x] | Length [x] | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | Plug to Plug | Polarizing Key, Strain Relief | 508 mm | 1.67 ft | 2 | 26 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | ||||||
0.76 Ám | 30 Áin | Plug to Plug | Polarizing Key, Strain Relief | 2 | 30 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 457.2 mm | 1.5 ft | |||||||
0.76 Ám | 30 Áin | Plug to Plug | Polarizing Key, Strain Relief | 152.4 mm | 2 | 20 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 6 " | 0.5 ' | ||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | Plug to Plug | Polarizing Key, Strain Relief | 2 | 24 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 457.2 mm | 1.5 ft | ||||||
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | Plug to Plug | Polarizing Key, Strain Relief | 508 mm | 1.67 ft | 2 | 14 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | ||||||
0.76 Ám | 30 Áin | Multiple, Ribbon | Plug to Plug | Polarizing Key, Strain Relief | 152.4 mm | 2 | 34 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 6 " | 0.5 ' | |||||
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | Plug to Plug | Polarizing Key, Strain Relief | 508 mm | 1.67 ft | 2 | 64 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | ||||||
0.76 Ám | 30 Áin | Plug to Plug | Polarizing Key, Strain Relief | 2 | 20 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 457.2 mm | 1.5 ft | |||||||
0.76 Ám | 30 Áin | Plug to Plug | Polarizing Key, Strain Relief | 2 | 50 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold | 914.4 mm | 3 ft | |||||||
0.76 Ám | 30 Áin | Multiple, Twisted Pair (Flat) | Plug to Plug | Polarizing Key, Strain Relief | 508 mm | 1.67 ft | 2 | 60 | IDC | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Unshielded | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M3RRK Series

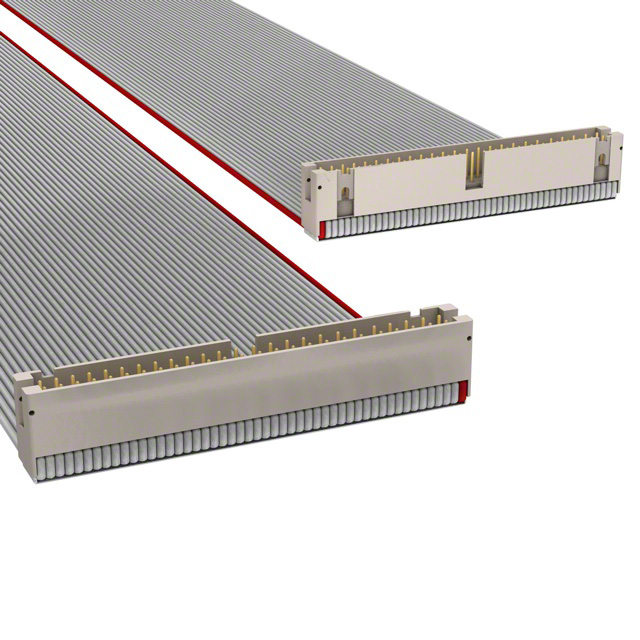

50 Position Cable Assembly Rectangular Plug to Plug 3.00' (914.40mm)
